Description

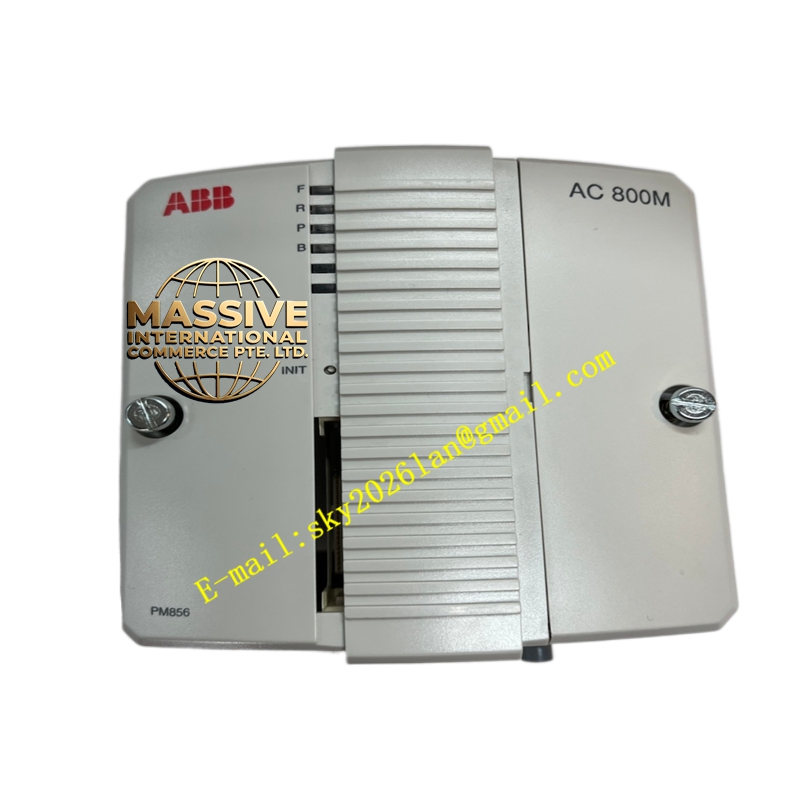

ABB PM856K01
Technical Specifications:
- Platform: AC800M.
- Memory: 512 kB program memory.
- Communication: Integrated RS232 and optional Ethernet/fieldbus.
- Battery: Backup battery for real-time clock and memory retention.
Functional Features:
- Redundancy Support: Supports CPU redundancy for high availability.
- Integrated Web Server: Built-in web server for diagnostics and data access.
- Hot-Swap: Supports hot-swapping of I/O modules and communication modules.
- IT Connectivity: FTP and SNTP support for enterprise integration.
Application Scenarios:
- Continuous process industries.
- Power generation and distribution.
- Water and wastewater treatment.
- Marine and offshore automation.
Performance Parameters:
- Processing Speed: Fast instruction execution.
- Communication: High-speed backplane and fieldbus communication.
- Data Retention: Non-volatile memory with battery backup.
Material Composition & Structural Characteristics:
- Form Factor: Standard AC800M module size.
- Connectors: Backplane and front-panel communication ports.
- Battery: Replaceable lithium battery.
Working Principle:
The PM802F executes control tasks in a deterministic real-time environment. It communicates with distributed I/O stations over fieldbus networks, processes control logic, and exchanges data with higher-level SCADA/DCS systems. Redundant configurations ensure continuous operation during hardware failures.
Installation Requirements:
- Mounting: DIN rail or rack mounting.
- Battery: Install battery before first power-up.
- Network: Configure IP addresses and fieldbus parameters.
- Software: Use Control Builder for programming.
Usage Precautions:
- Battery Replacement: Replace battery within specified time to prevent data loss.
- Redundancy: Ensure both CPUs are synchronized and tested.
- Cooling: Maintain adequate airflow.
- ESD: Use ESD protection during handling.
