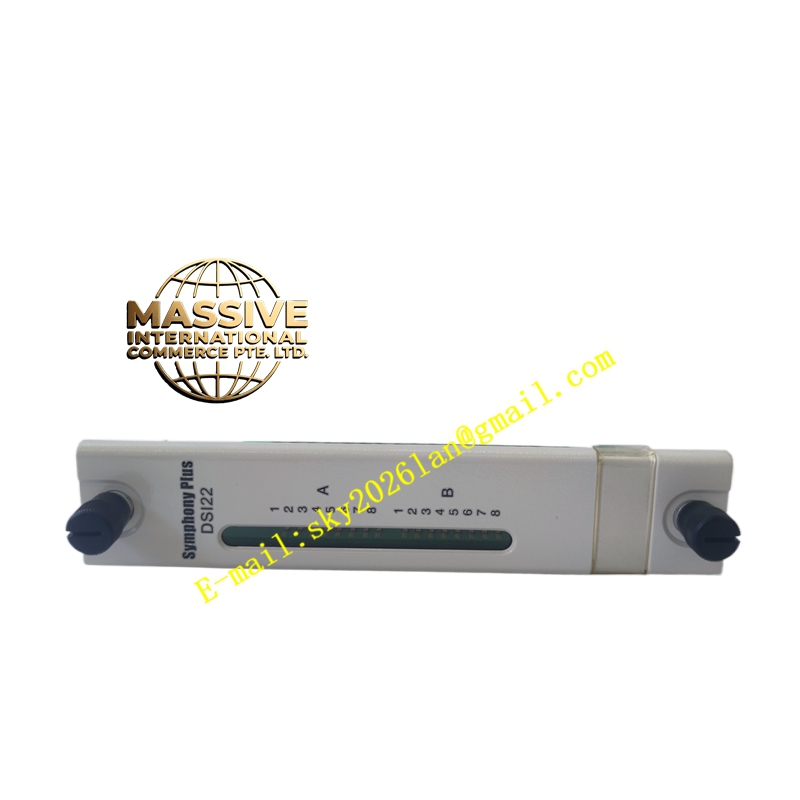

ABB SPDSI22

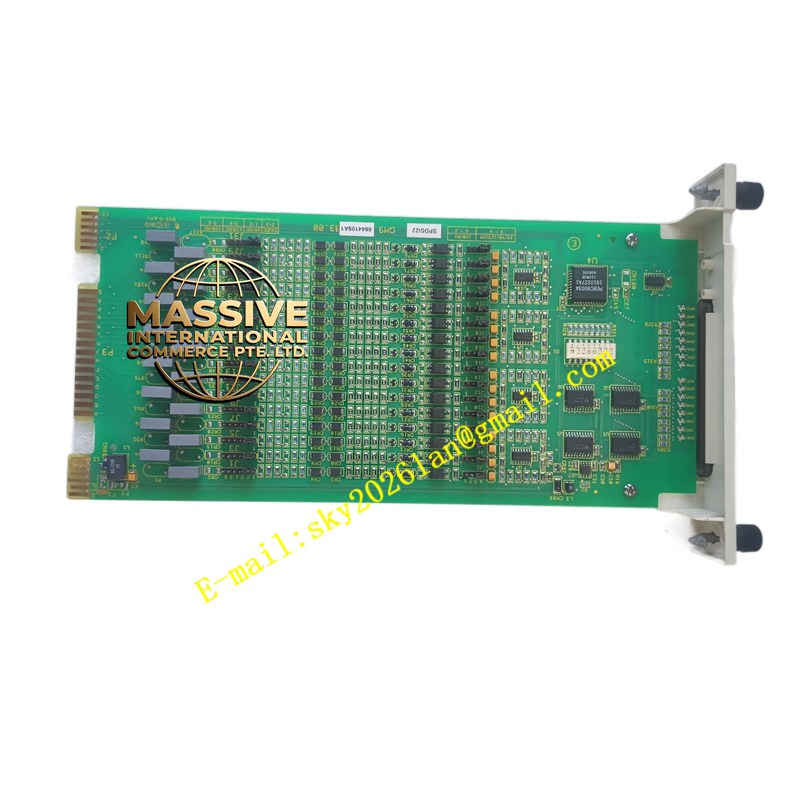

ABB SPDSI22 - Image 2

ABB SPDSI22

Product Overview:
The ABB SPDSI22 is a high-performance digital input submodule belonging to the ABB Symphony Plus series (originally Bailey Infi 90). It is specifically designed to receive discrete field signals and convert them into digital data for the central controller, ensuring accurate real-time monitoring of equipment status in complex industrial environments.

Request Quote
Category: SKU: ABB SPDSI22

Description

ABB SPDSI22

Technical Specifications:

  • Channel Capacity: Supports 16 or 32 independent input channels.
  • Input Signal Compatibility: Accepts 24V DC, 48V DC, 125V DC, and 120V AC signals.
  • Input Type: Flexible configuration supporting both sinking (NPN) and sourcing (PNP) inputs.
  • Power Requirements: 24V DC supply with an operating voltage range of 20.4-28.8V DC.
  • Power Consumption: Highly efficient operation with a power consumption of only 2.5W.

Functional Features:

  • High-Speed Response: Features high-precision signal conversion and extremely short response times.
  • Robust Protection: Integrated over-current, over-voltage, and over-temperature protection mechanisms to prevent damage from field anomalies.
  • Hot-Swappable: Supports hot-swapping capabilities to facilitate system expansion and maintenance without downtime.
  • Wide Temperature Tolerance: Operates reliably in extreme environments with a working temperature range of -25°C to +70°C.

Application Scenarios:

  • Real-time status acquisition and logic control in power generation substations.
  • Pipeline pressure and flow monitoring in petrochemical plants.
  • Sensor signal collection (temperature, humidity, vibration) in environmental monitoring systems.

Material Composition & Structural Characteristics:

  • Enclosure: Standard industrial rack size with an IP20 protection rating against dust and vibration.
  • Mounting: Designed for standard DIN rail installation.
  • Connectors: Interfaces seamlessly with the ABB Symphony/INFI 90 backplane.

Working Principle:
The SPDSI22 continuously polls its discrete input channels, detecting the presence or absence of voltage. It applies internal filtering and isolation to condition the signals before transmitting the digital states to the controller via the backplane bus.

Installation Requirements:

  • Mount the module on a standard DIN rail within a ventilated control cabinet.
  • Ensure the field wiring polarity matches the configured sinking or sourcing mode.
  • Maintain the ambient temperature within the specified -25°C to +70°C range.

Usage Precautions:

  • Verify the field voltage level matches the module’s rated input specifications to prevent internal circuit damage.
  • Utilize proper strain relief and ferrules on field wiring to ensure long-term connection reliability.
