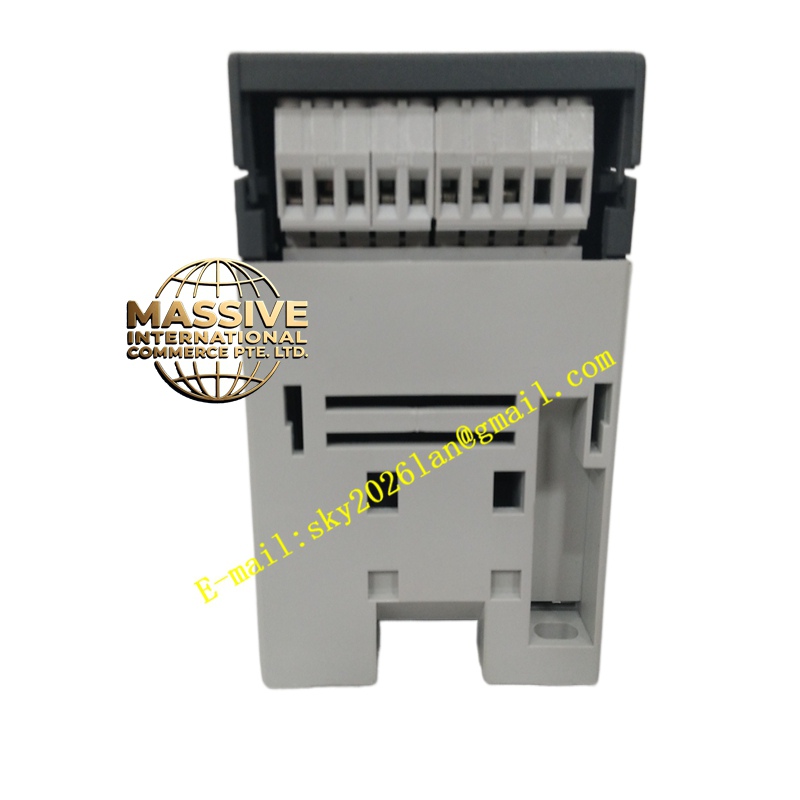

ABB XI16E1-F4
Technical Specifications:
- Channel Count: 16 independent digital input channels.
- Nominal Voltage: 24V DC.
- System Compatibility: ABB AC500 Programmable Logic Controllers.
Functional Features:
- High-Density Acquisition: Consolidates 16 discrete signals into a single module footprint.
- Noise Filtering: Integrated hardware filtering to prevent false triggering caused by electromagnetic interference.
- Visual Diagnostics: Individual LED indicators for each channel to facilitate rapid troubleshooting.
Application Scenarios:
Ideal for manufacturing lines, packaging machinery, and building management systems requiring the monitoring of multiple limit switches, proximity sensors, and pushbuttons.
Performance Parameters:
- Input Impedance: Optimized for standard industrial 24V DC signaling.
- Response Time: Fast cyclic scanning to support high-speed discrete applications.
Material Composition:
Constructed with flame-retardant thermoplastic housing and gold-plated internal bus connectors for long-term reliability.
Structural Features:
Standardized modular form factor compatible with AC500 terminal bases (e.g., TU515). Features a 25-pin front connector for efficient field wiring.
Working Principle:
Conditions incoming 24V discrete signals, provides galvanic isolation from the backplane, and converts them into digital logic states readable by the PLC CPU during the input scan cycle.
Installation Requirements:
Plug securely into a compatible AC500 terminal base. Utilize shielded twisted-pair cables for inputs located in high-noise environments.
Usage Precautions:
Ensure the sinking/sourcing wiring configuration matches the module specifications. Verify that field device voltages do not exceed the 24V DC nominal rating.
