Description

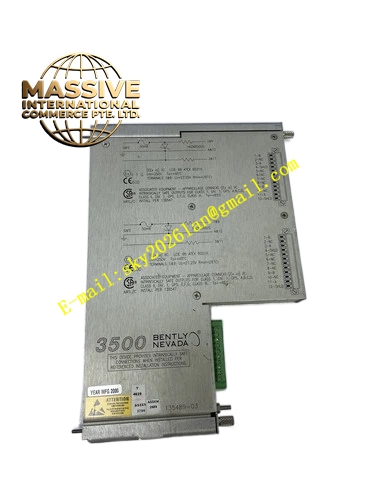

Bently 135489-03
Technical Specifications
- Model: 135489-03
- Channels: 4 channels
- System Compatibility: 3500 Series Machinery Protection System
Functional Features
- Customized Configuration: Factory-preset channel functions and alarm logic to reduce field commissioning time.
- Intrinsic Safety: May include internal safety barriers for use in hazardous areas without external barriers.
- Multi-Sensor Support: Compatible with displacement, velocity, or acceleration sensors based on configuration.
Application Scenarios
Specifically deployed in OEM equipment packages or standardized plant monitoring systems requiring pre-defined vibration monitoring configurations.
Performance Parameters
- Safety Certification: Meets ATEX or IECEx intrinsically safe standards (if applicable to -03 variant)
- Operating Temperature: -40°C to +70°C
Material Composition
High-strength industrial-grade flame-retardant plastic housing with internal circuit boards treated with tri-proof coating.
Structural Characteristics
Standard 3500 module size with internal terminal design, front-panel channel status and alarm indicator LEDs.
Working Principle
Receives analog signals from sensors, applies internal safety barrier isolation and energy limiting (if applicable), conditions and digitizes the signal, and transmits processed data to the main monitor module.
Installation Requirements
Must be inserted into the designated slot in the 3500 rack. When used in hazardous areas, strictly follow intrinsically safe installation manuals for wiring and grounding.
Precautions for Use
When ordering or replacing, strictly verify the suffix configuration code to ensure consistency with the existing system. Wear an anti-static wrist strap before operation.
