Description

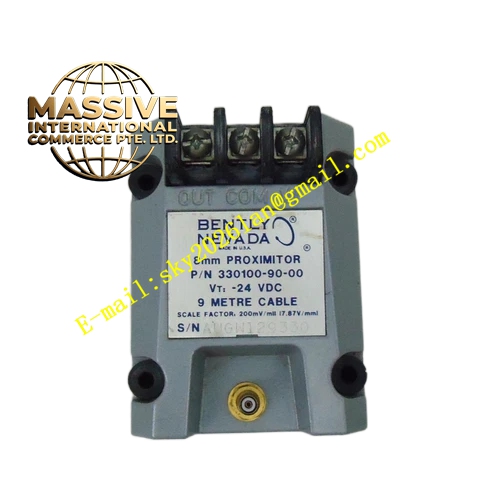

Bently 330100-90-01
Technical Specifications
- Model: 330100-90-01
- Sensor Type: Eddy Current Proximity Probe Assembly
- System Compatibility: 3300 XL Series Sensor Systems
Functional Features
- Non-Contact Measurement: Provides highly accurate, wear-free measurement of shaft dynamics.
- High Frequency Response: Capable of capturing high-frequency vibration data for diagnostic analysis.
- Interchangeability: Fully interchangeable with other 3300 XL series components without system recalibration.
Application Scenarios
Used in various rotating machinery applications for shaft vibration, axial displacement, and position monitoring.
Performance Parameters
- Sensitivity: Standard 3300 XL sensitivity
- Operating Temperature: -52°C to +177°C
- Linearity: Excellent linearity across the specified range
Material Composition
High-temperature PPS engineering plastic tip encapsulation, high-purity copper coil, and durable cable jacket.
Structural Characteristics
Precision-machined cylindrical body with integrated cable and connector.
Working Principle
Operates on the eddy current principle, converting the physical gap between the probe and the rotating shaft into an electrical signal proportional to the displacement.
Installation Requirements
Install in properly tapped mounting holes.
