Description

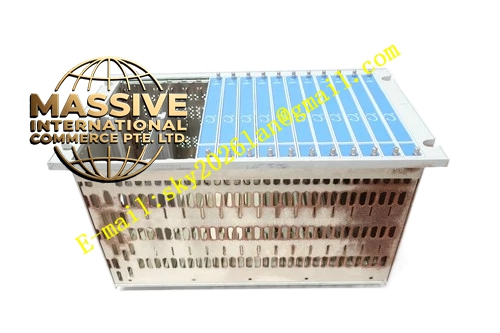

Bently 3500 05-01-02-00-00-01
Technical Specifications
- Model: 3500/05-01-02-00-00-01
- Form Factor: 19-inch EIA Standard Rack
- Module Capacity: 14 available module slots
- System Compatibility: 3500 Series
Functional Features
- Modular Architecture: Provides dedicated slots for power supplies, communication interfaces, and various monitoring modules.
- Backplane Connectivity: Features a robust internal backplane for high-speed data communication and power distribution.
- Grounding System: Integrates a comprehensive grounding system to ensure electromagnetic compatibility (EMC).
Application Scenarios
Deployed in control cabinets across power generation, oil and gas, petrochemical, and manufacturing facilities to house the complete 3500 protection and monitoring system.
Performance Parameters
- Operating Temperature: -30°C to +65°C
- Storage Temperature: -40°C to +85°C
Material Composition
Constructed from heavy-duty steel and aluminum alloys with a durable powder-coated finish, providing excellent structural rigidity and corrosion resistance.
Structural Characteristics
Standard 19-inch rack-mountable enclosure with precision-machined guide rails, locking mechanisms, and integrated grounding studs.
Working Principle
Acts as a passive mechanical and electrical infrastructure, routing power and data signals between modules via the backplane while providing physical protection and EMI shielding.
Installation Requirements
Must be securely mounted in a standard 19-inch equipment rack. Ensure adequate clearance for ventilation and module insertion. Connect the main grounding point to the facility earth ground.
Precautions for Use
Always install modules in the correct slot positions as specified in the system manual. Avoid exposing the rack to excessive moisture or corrosive gases.
