Description

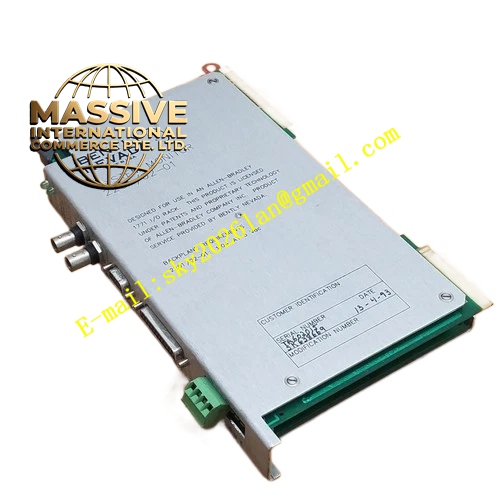

Bently 3500/15-04-00-00
Technical Specifications
- Module Type: Single Low Voltage DC Power Supply
- Upper Slot Input: 20 to 30 VDC
- Lower Slot: No power supply
- Output: Regulated DC for 3500 backplane
Functional Features
- DC Power Compatibility: Designed for 24 VDC infrastructure.
- Single Supply Operation: Suitable for non-critical or redundant external power applications.
- Status Monitoring: “Power Good” LED indication.
Application Scenarios
Deployed in facilities with 24 VDC power systems where redundancy is provided externally or not required.
Performance Parameters
- Operating Temperature Range: -30°C to +65°C (-22°F to +149°F)
- Efficiency: High-efficiency DC-DC conversion
- Protection: Over-voltage, over-current, and reverse polarity protection
Material Composition
Industrial-grade DC-DC converter components with robust thermal management.
Structural Characteristics
Single half-height module in upper slot with front-panel DC input terminals and status LED.
Working Principle
Converts 24 VDC input to regulated DC output for the 3500 rack.
Installation Requirements
Install in the upper leftmost power supply slot. Connect 24 VDC with proper polarity and conductor sizing.
Usage Precautions
Verify input voltage and polarity. Ensure adequate ventilation. Never remove while energized.
