Description

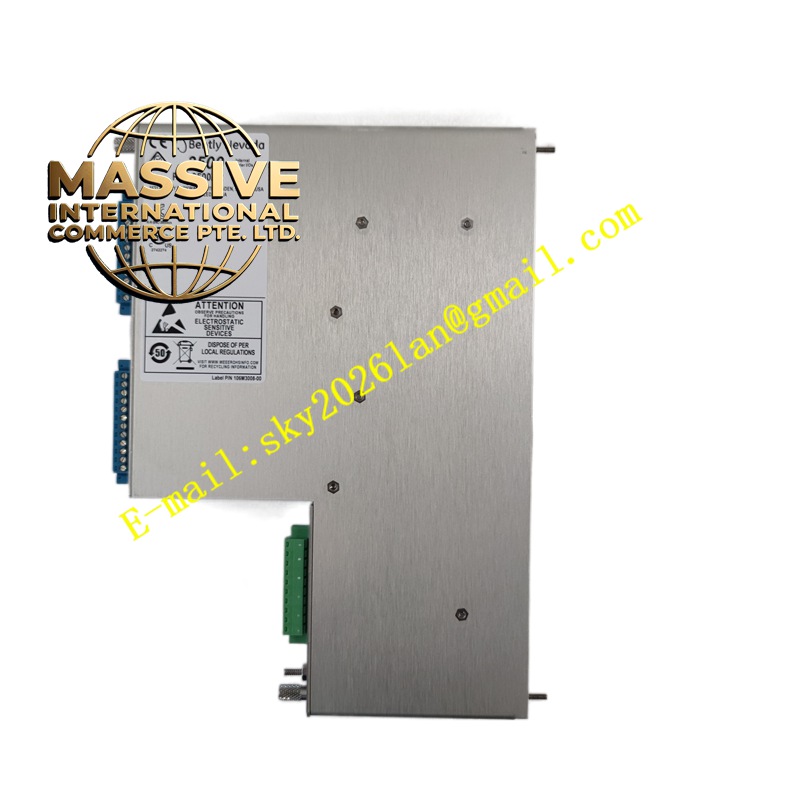

Bently 3500/15 106M1081-01, 129478-01
Technical Specifications
- Module Type: Low Voltage DC Power Supply
- Input Voltage: 20 to 30 VDC
- Output: Regulated DC for 3500 backplane
- Redundancy: Supports dual power supply configuration
Functional Features
- DC Input Compatibility: Ideal for facilities with dedicated 24 VDC power systems or UPS-backed DC supplies.
- Seamless Redundancy: Can be paired with an AC power supply for mixed-source redundancy.
- Status Indication: Front-panel LED indicates “Power Good” status.
Application Scenarios
Deployed in facilities with 24 VDC infrastructure, control panels with DC UPS backup, or applications requiring mixed AC/DC redundant power.
Performance Parameters
- Operating Temperature Range: -30°C to +65°C (-22°F to +149°F)
- Efficiency: High-efficiency DC-DC conversion
- Protection: Over-voltage, over-current, and reverse polarity protection
Material Composition
Constructed with industrial-grade DC-DC converter components and robust thermal management.
Structural Characteristics
Standard half-height 3500 module with front-panel DC input terminals, status LED, and rear DC output bus connections.
Working Principle
Converts low-voltage DC input to regulated DC output using high-frequency DC-DC switching topology with feedback regulation.
Installation Requirements
Install in the designated leftmost power supply slot. Connect 24 VDC input with properly sized conductors and verify polarity before energizing.
Usage Precautions
Verify input voltage is within the 20-30 VDC range. Ensure proper polarity to prevent damage. Never remove while energized.
