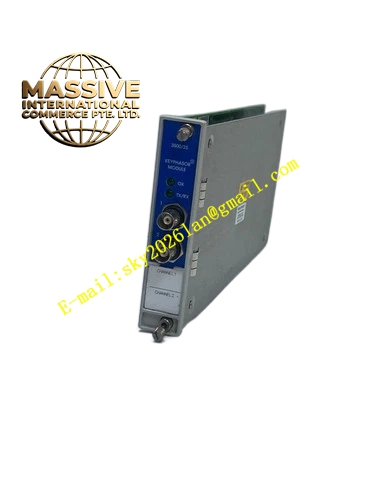

Bently 3500/92‑01‑01‑00

Bently 3500/92‑01‑01‑00

Product Brief Introduction: It belongs to 3500/92 gateway series variant, base hardware consistent with‑01‑00‑00‑00, with different factory configuration setting for serial function option. It serves as data bridge for 3500 machinery protection rack and external control system, collect vibration, temperature, rotating speed, alarm, fault event data inside rack, provide Modbus RTU, Modbus‑TCP and proprietary communication protocol for DCS, SCADA and configuration software access, for rotating machinery monitoring data uploading and remote configuration maintenance

Request Quote
Category:

Description

Bently 3500/92‑01‑01‑00

Technical Specifications:

  • Interface: 10BASE‑T RJ45 Ethernet, RS232 / RS422 / RS485 serial port
  • Communication Protocol: Modbus RTU, Modbus‑TCP, Bently Nevada proprietary protocol
  • Typical power consumption: 5.0W
  • Operating temperature: ‑30°C ~ +65°C
  • Storage temperature: ‑40°C ~ +85°C
  • Weight: 0.82kg
  • SIL‑2 safety certification, CE and UL approval Functional Features:
  1. Acquire full set of rack monitoring data, alarm status, system diagnostic information from rack internal bus
  2. User‑configurable Modbus register mapping table, flexible adjust uploaded data content
  3. Concurrent Ethernet and serial communication service, simultaneously connect configuration tool and plant automation system
  4. Hardware self‑diagnosis, report gateway itself and communication link fault to rack system
  5. Support remote download configuration parameters to whole 3500 rack via Ethernet
  6. Transmit complete rotating machinery condition data to upper monitoring platform Application Scenarios: Power generation, petrochemical, oil‑gas compressor station rotating machinery protection system, realize data interconnection between TSI rack and DCS; remote diagnosis and parameter modification for field machinery protection equipment; predictive maintenance data acquisition application Performance Parameters: Real‑time rack‑bus data collection; configurable Modbus mapping; anti‑electromagnetic‑interference industrial communication performance; remote configuration support Material Composition: Anodized aluminum alloy front panel; industrial FR‑4 main circuit board; industrial communication chip and control MCU; gold‑plated high‑density rack backplane connector Structural Characteristics: Standard full‑height plug‑in card for single rack front slot; front side with Ethernet RJ45 socket, serial terminal blocks and multi‑color LED status indicators; rear connector connects to rack internal bus; locking screw for anti‑vibration fixation Working Principle: Gateway continuously reads measurement data, alarm flags and fault information from each monitoring module through rack backplane bus. Data is packaged according to selected communication protocol. It responds data request sent by DCS or configuration software over Ethernet or serial interface. Configuration command received from upper software will be forwarded to each monitoring module through rack bus to complete parameter updatingBaker Hugh…。 Installation Requirements:
  7. Anti‑static protection is required during module installation, power‑off rack before inserting card
  8. Ethernet uses industrial shield twisted‑pair cable, implement single‑point shielding ground
  9. RS485 serial bus shall install matching terminal resistor at bus terminal
  10. Set IP address, Modbus slave address and register mapping by 3500 rack configuration software
  11. Confirm firmware compatibility between gateway and rack backplane Usage Precautions:
  12. Physically isolate gateway industrial network from office IT network to avoid network security risk
  13. Reasonably configure Modbus register quantity, prevent communication over‑loading
  14. Regularly check communication status LED, handle link failure timely
  15. Complete configuration file backup after commissioning finished
  16. Protect communication interfaces from surge and static‑electricity damage
