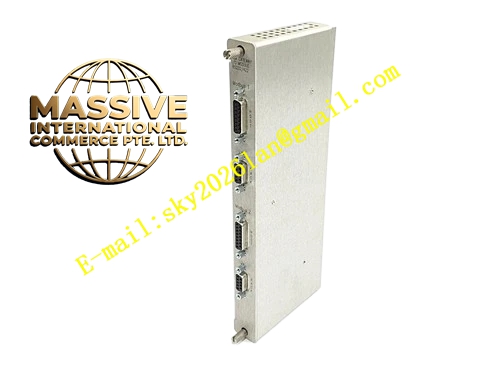

Bently 3500/92‑02‑01‑00 (133323‑01)
- Key Features: Multi‑protocol concurrent communication capability; enhanced data‑mapping table capacity; complete rack‑wide data acquisition covering vibration, displacement, rotating‑speed, alarm flags and diagnostic logs; electrical isolation between rack‑internal bus and external communication ports; full hot‑swap maintainability; multi‑color front‑panel LED status indicators; compatible with System 1 diagnostic workstation and mainstream DCS‑PLC systems.
- Technical Specifications & Performance Parameters
- Typical power consumption: 7.2 W
- Operating temperature: 0 ℃ ~ +60 ℃
- Storage temperature: ‑40 ℃ ~ +85 ℃
- Supported industrial protocols: Modbus‑RTU, Modbus‑TCP, proprietary Bently Nevada protocol
- Weight: 0.48 kg
- Material Composition: FR‑4 high‑Tg multilayer industrial printed circuit board; high‑performance industrial communication processor chip; magnetic isolation components for communication signal circuits; gold‑plated back‑plane edge connector; metal front‑panel with multi‑color LED status indicators; metal shielding can for analog‑digital mixed‑signal circuits; reinforced plastic mechanical locking latch.
- Structural Features: Full‑height plug‑in rack‑module mechanical structure; front‑panel LED indicators for power‑supply status, rack‑bus activity and external‑communication link health; rear‑side gold‑plated edge connector mates with 3500 rack back‑plane bus; external communication signal wiring terminates on matched external I/O module; mechanical latch locks module firmly inside rack slot.
- Working Principle: Module continuously reads measurement data, alarm state bits and self‑diagnostic status from all monitor modules over 3500 rack back‑plane bus. It organizes collected raw data into standardized industrial‑protocol data frames according to user‑configured data‑mapping table. Encapsulated data transmits to external DCS, PLC or System 1 workstation via matched I/O termination assembly. It also receives configuration commands and host‑system queries and forwards these instructions back onto rack internal bus.
- Application Scenarios: High‑capacity data‑gateway for large‑scale steam‑turbine and centrifugal‑compressor 3500 TSI racks; bi‑directional data exchange between machinery‑protection rack and plant‑wide DCS control‑system; connection with System 1 machinery‑fault‑diagnosis workstation; petrochemical complex and thermal‑power‑plant rotating‑machinery remote monitoring‑data upload.
- Installation Requirements: Insert full‑height module into designated communication‑gateway slot on 3500 rack; fully engage mechanical locking latch; configure communication protocol, station address and complete data‑mapping table inside 3500 rack‑configuration software; install matched I/O termination module and complete external communication‑cable wiring; verify communication link status by checking front‑panel LED indicators after power‑on.
- Usage Notes: Perform ESD static‑electricity protection during module handling and replacement; strictly follow official maintenance procedure for hot‑swap operation; apply surge‑protection devices for long‑distance external communication‑cable routes; inspect front‑panel LED communication‑status indicators during daily equipment‑inspection rounds; preserve complete rack‑configuration backup‑file after modifying communication‑mapping parameters.
