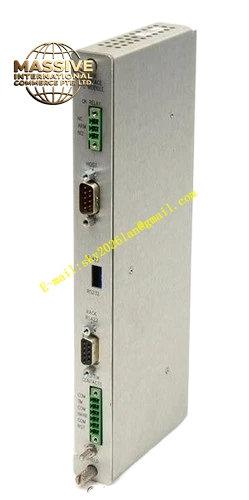

Bently 3500/92‑04‑01‑01
Technical Specifications:
- Communication interfaces: RJ45 10BASE‑T Ethernet, enhanced RS485 serial communication interface
- Supported protocols: Modbus RTU over serial, Modbus‑TCP over Ethernet, Bently Nevada proprietary protocol
- Typical power consumption: 5.6W
- Operating temperature: ‑30°C ~ +65°C
- Storage temperature: ‑40°C ~ +85°C
- Weight: 0.82kg
- Functional safety certification: SIL‑2; certifications: CE, UL Functional Features:
- Full‑data acquisition for every monitoring module inside 3500 rack via backplane bus
- Customizable Modbus register mapping function, user can define uploaded data content and register address
- Simultaneous operation of Ethernet and serial communication channel
- Comprehensive self‑diagnosis for gateway hardware fault and communication link abnormality
- Realize remote configuration parameter downloading to entire 3500 rack via Ethernet
- Transmit complete machinery condition, alarm trip and diagnostic event information to plant automation system Application Scenarios: Petrochemical plant, power station, offshore platform, long‑distance serial bus DCS connection projects for turbine, compressor and generator protection rack; industrial site with heavy electromagnetic interference, requiring stable RS485 serial communication for machinery protection system data uploading Performance Parameters: Real‑time cyclic data collection from rack internal bus; configurable Modbus mapping table; enhanced anti‑interference performance for RS485 serial port; support remote configuration and diagnosis Material Composition: Anodized aluminum alloy front panel; industrial FR‑4 printed circuit board; enhanced serial communication driving chip, industrial control MCU; gold‑plated high‑density backplane connector for rack bus Structural Characteristics: Standard full‑height plug‑in card occupies single front‑side slot of 3500 rack; front panel has RJ45 Ethernet port, serial terminal blocks and multi‑color LED working status indicators; rear high‑density connector connects with rack back‑plane bus; locking screw for anti‑vibration mechanical fastening Working Principle: The gateway module reads all real‑time measuring value, alarm flags and fault diagnostic information from each monitor module through rack back‑plane bus. According to Modbus or proprietary protocol format, data is packaged and responded to external DCS system request over Ethernet or enhanced RS485 serial channel. Configuration instruction from upper configuration software will be forwarded to each monitoring module by rack bus to realize remote parameter modification and downloading。 Installation Requirements:
- Power‑off rack and wear anti‑static wrist‑strap during hardware installation
- Ethernet cable adopts industrial shielded twisted‑pair cable, single‑point ground for shielding layer
- RS485 serial bus wiring must add terminal matching resistor at bus physical terminal
- Configure IP address, Modbus slave address and customized register mapping table via 3500 rack configuration software
- Check firmware compatibility between gateway module and rack back‑plane Usage Precautions:
- Isolate gateway industrial control network from office network for cybersecurity protection
- Avoid setting excessive Modbus registers which would lead to communication cycle delay
- Observe communication LED status regularly, troubleshoot serial bus interference and connection fault timely
- Back‑up complete rack configuration file after commissioning
- Prevent surge voltage and static‑electricity from damaging Ethernet and serial interface circuit
