Description

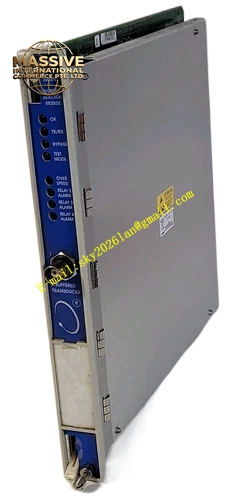

Bently 3500 92 136160-01
Technical Specifications
- Model: 3500/92 (136160-01)
- Communication Interfaces: Ethernet, RS-232, RS-485
- System Compatibility: 3500 Series Machinery Protection System
Functional Features
- Multi-Protocol Support: Compatible with Modbus RTU/TCP and Bently Nevada proprietary protocols.
- High-Speed Data Transfer: Enables real-time data acquisition and system configuration from remote locations.
- System Diagnostics: Provides comprehensive communication status and fault reporting.
Application Scenarios
Deployed in all 3500 system control cabinets to integrate machinery protection data into plant DCS, SIS, or condition monitoring software.
Performance Parameters
- Data Transfer Rate: 10/100 Mbps adaptive Ethernet
- Operating Temperature: -30°C to +65°C
Material Composition
Robust metal and flame-retardant plastic composite enclosure providing excellent electromagnetic interference (EMI) shielding.
Structural Characteristics
Standard 3500 module size with rich network status and communication activity indicator LEDs on the front panel, and multiple communication interface ports on the rear.
Working Principle
Polls data from all monitoring modules via the backplane bus in real-time, encapsulates and packages the protocols, and transmits them to host systems via Ethernet or serial links.
Installation Requirements
Insert into an available slot in the 3500 rack. Communication cables must use standard shielded twisted pairs, with proper single-point grounding.
Precautions for Use
Configure IP addresses and communication parameters to strictly match the upper-level network plan. Avoid routing communication cables parallel to high-voltage power cables.
