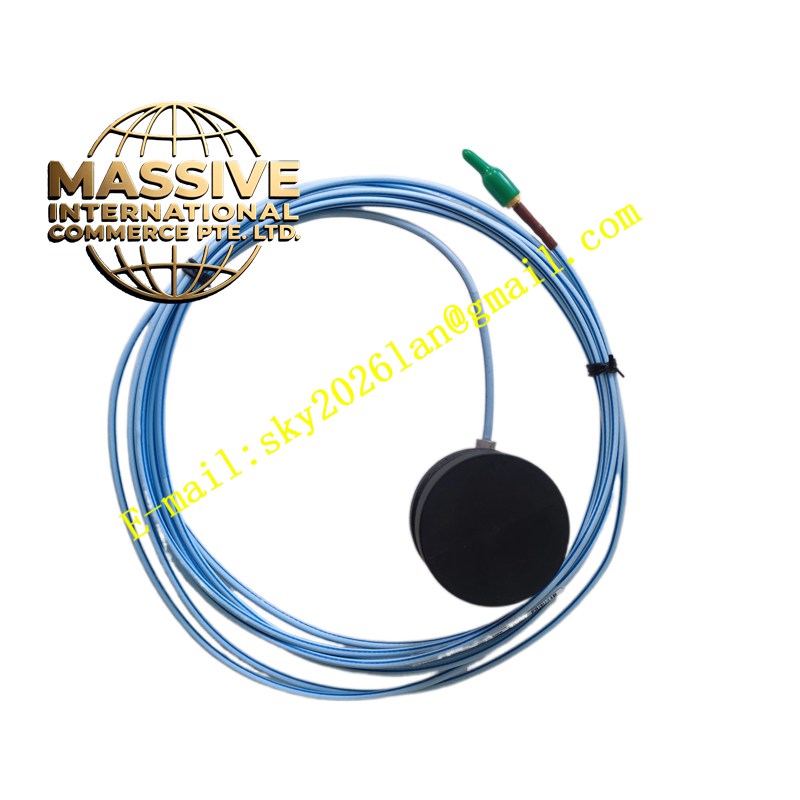

Bently Nevada 330901-00-22-05-02-00
Technical Specifications
- Base Model: 330901, 3300 NSv Probe with 1/4-28 UNF thread, without armor
- Unthreaded Length: 0.0 inches (fully threaded)
- Overall Case Length: 2.2 inches (55.9 mm)
- Total Probe Length: 0.5 meter (20 inches)
- Connector Type: Miniature coaxial ClickLoc connector, standard cable
- Agency Approval: Not required
- Linear Range: 1.5 mm (60 mils)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz
- Probe Tip Diameter: 5 mm
- Probe Case Material: AISI 304 stainless steel
- Probe Tip Material: Polyphenylene sulfide
- Operating Temperature: -52°C to +177°C
- Storage Temperature: -52°C to +177°C
- DC Resistance: 4.0 ± 0.5 Ω
- Minimum Bend Radius: 25.4 mm
Functional Features
- 1/4-28 UNF imperial thread for North American equipment compatibility
- Compact 2.2 inch case length
- Short 0.5 meter cable for proximity mounting
- Standard ClickLoc connector
- Narrow Side-view characteristics for tight clearances
- Full compatibility with 3300 XL NSv system components
- Interchangeable without field recalibration
Application Scenarios
- North American compressor and pump monitoring
- Retrofit applications requiring imperial threads
- Small motor and generator bearing surveillance
- Machine tool spindle measurement
- General industrial rotating equipment
Performance Parameters
- Linearity Deviation: Less than ±0.06 mm
- Resolution: Sub-micron vibration detection
- Interchangeability: Within system tolerance
- Temperature Stability: ±10% over full range
- Maximum Thread Engagement: 0.375 inches (9.53 mm)
- Recommended Torque: 5.1 N·m (45 in·lb)
Material Composition
- Probe Case: AISI 304 stainless steel
- Probe Tip: Polyphenylene sulfide
- Cable Insulation: Fluorinated ethylene propylene
- Connector Contacts: Gold-plated brass
Structural Characteristics
- Cylindrical 2.2 inch threaded body with 1/4-28 UNF thread
- 0.5 meter integral coaxial cable
- Standard miniature ClickLoc connector
- PPS probe tip with TipLoc molding
- Compact design for restricted spaces
Working Principle The probe generates a high-frequency electromagnetic field through its internal coil. When a conductive target is present, eddy currents induced in the target surface modify the coil impedance. The Proximitor sensor converts this impedance variation into a proportional voltage output, providing both static position and dynamic vibration data.
Installation Requirements
- Mount in 1/4-28 UNF threaded hole perpendicular to target
- Ensure maximum thread engagement of 0.375 inches
- Set probe gap to 1.0 mm (40 mils)
- Verify gap voltage of approximately -10 Vdc
- Maintain minimum cable bend radius of 25.4 mm
- Route cable away from power conductors
Usage Precautions
- Verify thread specification matches mounting hole
- Do not exceed recommended torque during installation
- Inspect probe tip before installation
- Ensure connector locking mechanism is engaged
- Short cable length requires Proximitor to be mounted nearby
- Store with connector cap installed to prevent contamination
