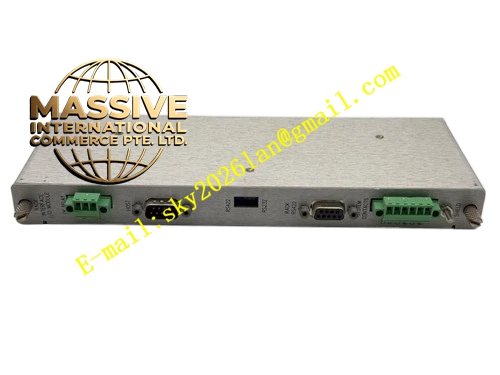

Bently Nevada 3500/15-04-04-00 133300-01
Technical Specifications:
- Input Voltage: 88 VDC to 140 VDC
- Input Current: Maximum approximately 1.5 A at 88 VDC full load
- Output Voltage: +5.1 VDC (±1%), +12 VDC, -12 VDC
- Rated Power: 60 W typical at 20°C environment
- Efficiency: ≥ 80%
- Hold-up Time: > 10 ms after input power loss
- Insulation Strength: Input to output ≥ 1500 VAC
- Operating Temperature: -30°C to +65°C
- Storage Temperature: -40°C to +85°C
- Form Factor: Half-height module occupying one slot width
- Weight: Approximately 1.5-2.0 kg
- Cooling: Natural convection or forced air depending on rack fan configuration
Functional Features:
- High voltage DC direct input eliminating need for additional DC/DC converters
- Wide input range (88-140V) accommodating battery float charge, equalization charge, and discharge conditions
- Redundant parallel operation with automatic current sharing
- Millisecond-level seamless switchover in dual power configuration
- Hot-swappable design supporting online maintenance without system shutdown
- Intelligent health management reporting input undervoltage, overvoltage, overheating, and fan failure
- Soft-start circuit preventing inrush current during insertion
Application Scenarios:
- Thermal power plant feedwater pump turbine monitoring
- Large refining and chemical integrated ethylene compressor protection
- Nuclear power plant rotating equipment monitoring
- Any industrial facility with 110VDC or 125VDC control power systems
- Critical machinery requiring API 670 compliant redundant power
Performance Parameters:
- Voltage Regulation: ±1% for +5.1 VDC output
- Load Sharing: Automatic current balancing in redundant configuration
- Switchover Time: Millisecond-level seamless transfer
- Power Derating: Available for high temperature environments
Material Composition:
- Housing: Industrial-grade metal enclosure with heat dissipation design
- Circuit Board: Multi-layer printed circuit board with high-voltage isolation
- Power Components: High-efficiency switching power supply components
- Connectors: Rear terminal block or front panel wiring depending on rack type
Structural Characteristics:
- Half-height module design occupying minimal rack space
- Rear terminal block for power input connection
- Status LEDs for input/output voltage indication
- Rack mount installation in leftmost slots (Slot 1 or Slots 1 and 2 for redundancy)
Working Principle: The module employs high-frequency switching power supply technology to convert high voltage DC input to the multiple low voltage DC outputs required by the 3500 system. In redundant configuration, two modules operate in parallel with automatic current sharing. If one module fails or loses input power, the other module seamlessly assumes the full load within milliseconds, ensuring continuous operation of the monitoring system.
Installation Requirements:
- Must be installed in the leftmost slot (Slot 1) of the 3500 rack
- For redundancy, install second module in Slot 2
- Use appropriate wire gauge copper conductors with proper crimp terminals
- Ensure correct DC polarity before connection
- Verify input voltage is within 88-140 VDC range
- Both redundant power modules must have identical input voltage range and power rating
Use Precautions:
- Absolutely verify input voltage is 88-140 VDC before connection
- Do not mix different input type power modules (e.g., -04 HVDC with -01 AC or -02 24VDC) in redundant configuration
- Check DC polarity carefully before wiring
- Perform pull-test after dual power installation: disconnect one power input and verify seamless system operation
- Ensure cabinet ventilation or add rack fans in high temperature environments (>50°C)
- Tighten terminal screws regularly (annually) to prevent loosening and oxidation
