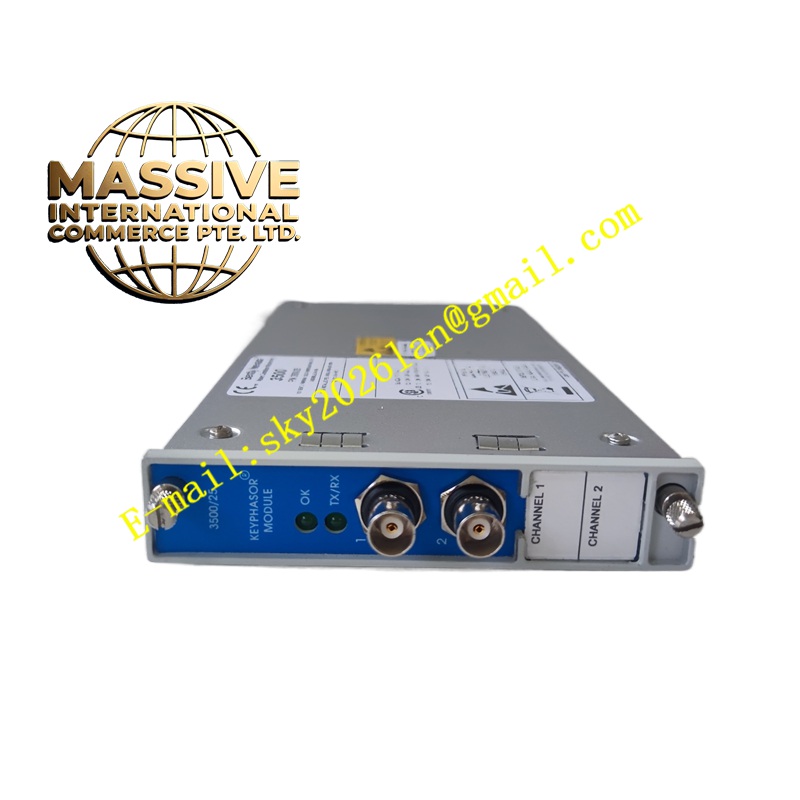

Bently Nevada 3500/92 136180-07
Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500 Series |
| Module Type | Communication Gateway I/O Module |
| Communication Interfaces | Ethernet TCP/IP, RS232, RS422, RS485 |
| Supported Protocols | Modicon Modbus, Modbus/TCP, Bently Nevada Proprietary Protocol |
| Ethernet Standard | 10BASE-T, IEEE 802.3 compliant |
| Serial Communication | RS232/RS422/RS485 selectable |
| Power Consumption | 5.0 watts (RS232/RS422 I/O); 5.6 watts (RS485 I/O) |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5% to 95% relative humidity, non-condensing |
| I/O Module Dimensions | 241 mm x 24.4 mm x 99.1 mm |
| I/O Module Weight | 0.44 kg |
| Mounting | 3500 Series rack mount |
Functional Features: The module supports simultaneous multi-protocol communication, allowing data transmission to multiple host systems using different protocols. It includes a Configurable Modbus Register Utility that replaces traditional fixed-register mapping with flexible, user-defined data configurations. The module provides status relay outputs for remote indication of module health. It supports firmware upgrades through dedicated upgrade kits to ensure compatibility with evolving system requirements.
Structural Characteristics: The module employs a two-part construction consisting of a main communication processor and an interchangeable I/O interface module. The design incorporates transient voltage suppression and electromagnetic interference filtering. The front panel features clearly labeled LED indicators for OK and TX/RX status. The rear connector interfaces with the rack backplane for internal module communication and external field connections.
Working Principle: Upon power-up, the module initializes communication with all monitoring modules installed in the 3500 rack. It establishes a high-speed internal network connection and begins cyclic data acquisition. The module processes raw monitoring data into engineering units, applies scaling factors, and organizes the information into accessible registers. External systems query these registers using standard Modbus commands or receive unsolicited updates based on configured alarm thresholds.
Installation Requirements: The module requires a full-height slot pair in the 3500 rack. Proper card guides must be used to ensure correct alignment. The I/O module installs in the rear slot corresponding to the main module in the front slot. External communication cables must be properly shielded and routed away from high-voltage power cables. Network termination resistors must be applied according to the communication standard used.
Application Scenarios: Steam turbine monitoring in power plants, gas turbine protection in combined cycle facilities, compressor monitoring in natural gas processing plants, pump protection in water treatment facilities, fan and blower monitoring in HVAC and industrial processes, and gearbox monitoring in mining and material handling equipment.
Usage Considerations: Verify proper rack grounding before module installation. Ensure that the communication cable length does not exceed specifications for the selected interface type. The module must be configured using compatible 3500 Rack Configuration Software before operational use. Avoid exposing the module to condensing humidity or corrosive atmospheres beyond specified limits.
