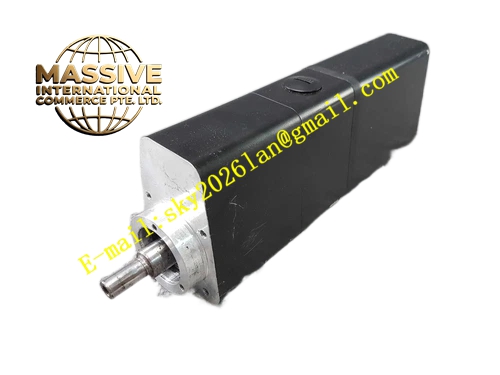

ELAU SCL055-30011-A-BA-AA
Technical Specifications:
- Brand: ELAU (Schneider Electric)
- Model: SCL055-30011-A-BA-AA
- Series: SCL055
- Product Type: Integrated Servo Motor/Drive
- Peak Torque: 4.4 Nm
- Holding Torque: 1.0 Nm (RMS)
- Rated Speed: 3000 RPM
Functional Features:
- Integrated Design: Combines motor, drive, and controller in a single trapezoidal housing.
- High Power Density: Compact design for rotary tables.
- IP67 Protection: Sealed against liquid ingress and corrosion, suitable for washdown environments.
- Single Cable Installation: Simplifies wiring on rotating tables.
- High Resolution Encoder: 1 million increments per turn for precise positioning.
Application Scenarios:
- Capping machines (bottling lines).
- Labeling machines.
- Rotary indexing tables.
- Food and beverage packaging (aseptic filling).
Performance Parameters:
- Control Precision: Micrometer level.
- Overload Capacity: High peak torque for short durations.
- Communication: SERCOS or EtherCAT (via PacDrive controller).
Material Composition:
- Stainless steel or coated aluminum housing.
- Special surface treatment for corrosion resistance.
Structural Features:
- Trapezoidal housing for direct integration into rotary tables.
- Reinforced bearings to handle high radial loads from belt drives.
- IP67 sealed connectors.
Working Principle:
The unit integrates the servo motor and the drive electronics. The controller sends setpoints via a fieldbus, and the integrated drive controls the motor current to achieve precise motion. The high-resolution encoder provides feedback for closed-loop control.
Installation Requirements:
- Mount directly into the rotary table cutout.
- Use the single cable connection for power and feedback.
- Ensure the controller (e.g., PacDrive C400) is configured for SCL motors.
Usage Notes:
- Verify the supply voltage (typically 48V DC or 400V AC depending on system).
- Ensure the rotary table design accommodates the trapezoidal shape.
- Use the specific ELAU software tools for parameterization.
