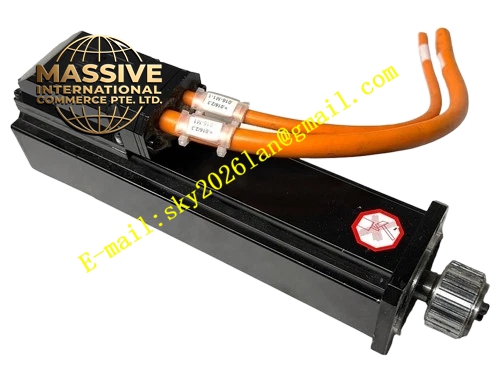

ELAU SM-070-60-020-P0-45-S1-B0
Technical Specifications:
- Brand: ELAU (Schneider Electric)
- Model: SM-070-60-020-P0-45-S1-B0
- Series: SM-070
- Flange Size: 70 mm
- Rated Speed: 6000 RPM
- Brake: B0 (No holding brake)
Functional Features:
- High Power Density: Delivers high torque in a compact package.
- High Resolution: Equipped with an S1 encoder (SinCos or high-res incremental) for precise feedback.
- Robust Design: IP65/IP67 protection options for harsh environments.
- Single Cable Technology: Simplifies wiring with combined power and feedback connections.
Application Scenarios:
- High-speed packaging (capping, labeling).
- Robotics and handling systems.
- Printing and paper converting.
Performance Parameters:
- Rated Torque: Optimized for high-speed operation.
- Control Modes: Position, Velocity, and Torque control.
- Efficiency: High energy efficiency due to permanent magnet design.
Material Composition:
- Industrial-grade aluminum housing.
- NdFeB permanent magnets.
Structural Features:
- Compact flange mounting.
- Sealed connectors for dust and water resistance.
- Smooth surface for easy cleaning.
Working Principle:
The motor operates as a synchronous AC servo. The drive supplies three-phase current to the stator, creating a rotating magnetic field that interacts with the permanent magnet rotor. The encoder provides real-time feedback to ensure the rotor follows the commanded position accurately.
Installation Requirements:
- Mount on a rigid surface to prevent vibration.
- Ensure the shaft alignment is precise to avoid bearing wear.
- Connect the single cable system securely.
Usage Notes:
- Since this model has no brake (B0), it is not suitable for vertical axes that require holding without power.
- Verify the drive is configured for the S1 feedback type.
- Do not exceed the maximum permissible shaft loads.
