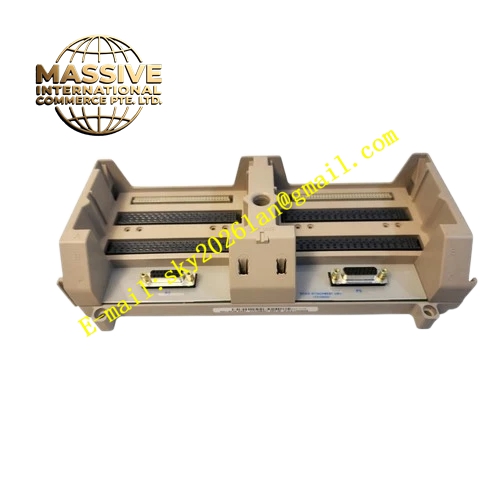

Emerson 1C31205G01
Technical Specifications:
- Brand: Emerson
- Model Number: 1C31205G01
- Product Type: Remote I/O Base Assembly
- System Platform: Ovation DCS Remote I/O Subsystem
- Location: Remote cabinet installation
- Module Support: Accepts Ovation electronics modules (such as 1C31203G01) and personality modules
- Communication: RS-485 serial communication between nodes; fiber optic cable connection to local node
- Bus Communication Rate: 2 MB between remote nodes
Functional Features:
- Remote I/O Infrastructure: Provides the mechanical mounting and electrical backplane for remote I/O module installation in field cabinets
- Power Distribution: Distributes power from the power supply to all installed modules within the remote node
- Signal Routing: Routes field signals from personality module terminals through the backplane to the electronics module for processing
- Fiber Optic Communication Interface: Connects to the local node via fiber optic cables for noise-immune long-distance communication
- Modular Expansion: Supports multiple I/O module slots for flexible system configuration
Application Scenarios:
- Remote Field Locations: Deploying I/O capability at field locations distant from the main control room
- Power Plants: Remote monitoring of balance-of-plant equipment
- Oil and Gas: Pipeline station and wellhead instrumentation aggregation
- Water Treatment: Distributed pump station and valve manifold control
Material Composition:
- Industrial-grade PCB backplane
- Metal mechanical housing
- Standard Ovation module slot connectors
Structural Features:
- DIN-rail or panel mount base assembly
- Multiple standardized module slots with keyed guides
- Backplane bus connectors for electronics and personality modules
- Fiber optic communication port
- Power input terminals
Working Principle:
The base assembly receives power from the power distribution module and distributes it to all installed modules through the backplane. Field wiring connects to the personality module terminals mounted on the base. The personality module conditions and adapts the field signals, passing them through the backplane to the electronics module. The electronics module digitizes the signals and communicates with the local node controller via the RS-485/fiber optic link. The local node controller aggregates data from all remote nodes and forwards it to the main Ovation controller.
Installation Requirements:
- Mount in a clean, ventilated remote field cabinet
- Connect fiber optic cables to the local node
- Connect power supply cables from the power distribution module
- Install personality modules first, then electronics modules, following the Ovation installation sequence
- Ensure proper grounding of the cabinet and base assembly
Usage Precautions:
- Follow the prescribed installation sequence: personality module first, then electronics module
- Align module guide pins with base slots carefully to prevent connector damage
- Do not force modules into slots; standardized design ensures smooth insertion without excessive force
- Verify fiber optic cable integrity before commissioning
- Perform loop checks on all channels after installation
