Description

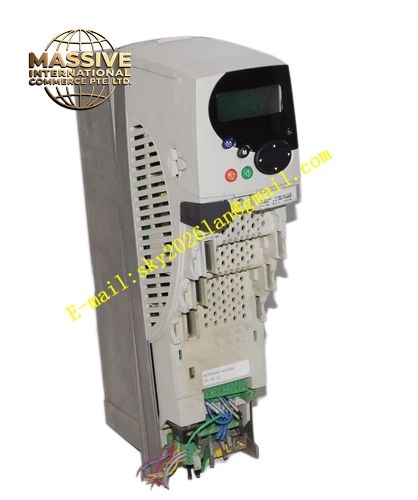

Emerson SP8413
Technical Specifications:
- Brand: Emerson (Control Techniques)
- Model Number: SP8413
- Product Series: Unidrive SP
- Rated Voltage: Three-phase AC 380–480V
- Output Voltage Control: PAM (Pulse Amplitude Modulation)
- DC Power Supply Type: Voltage source
- Built-in Filter: 1A + 1B filter
- Power Phase: Three-phase
- Control Method: V/F open-loop
- Supply Voltage Class: Medium voltage
Functional Features:
- Three Installation Modes: Surface mount, free-standing cabinet, and modular configurations
- Intelligent Dynamic Response: Reliable performance for demanding industrial applications
- Compact Structure: Space-saving design for retrofit and energy-saving installations
- Built-in EMI Filter: Integrated 1A + 1B filter for electromagnetic compatibility
- Flexible Integration: Suitable for both system integration and standalone operation
Application Scenarios:
- Industrial motor speed control and energy-saving applications
- Manufacturing automation system integration
- Pump, fan, and compressor control
- Conveyor systems and material handling
- Energy-efficient retrofit projects
Material Composition:
- Industrial-grade power electronic components
- Robust plastic housing enclosure
- Multi-layer PCB with integrated power and control circuits
Structural Features:
- Compact modular form factor
- Front-panel interface for parameter configuration
- Integrated heatsink for thermal management
- Rear terminal block for power and motor connections
Working Principle:
The SP8413 converts fixed-frequency AC input into DC via a rectifier stage, then inverts the DC into variable-frequency, variable-voltage AC output using pulse amplitude modulation. The V/F open-loop control maintains a proportional voltage-to-frequency ratio for motor speed and torque control.
Installation Requirements:
- Mount in a well-ventilated enclosure with adequate clearance for heat dissipation
- Connect three-phase power supply to input terminals per the wiring diagram
- Connect motor cables to output terminals with proper cable sizing
- Ensure proper chassis grounding
- Install built-in filter connections as specified
Usage Precautions:
- Verify motor compatibility with the drive’s rated specifications
- Ensure power supply voltage is within the 380–480V range
- Use shielded motor cables to minimize electromagnetic interference
- Allow adequate cooling airflow during operation
- Complete parameter configuration before commissioning
