Description

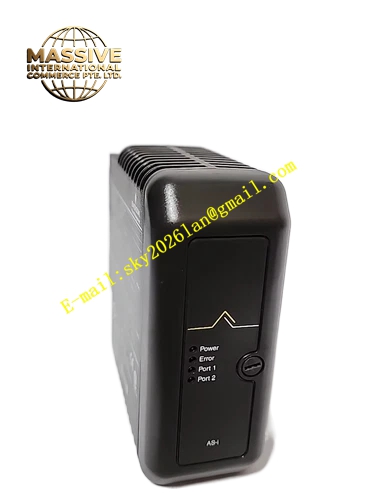

Emerson VE3004 12P1509X092
Technical Specifications
- Communication Function: Data exchange between DeltaV SIS and DeltaV DCS network
- Galvanic isolation between safety side and DCS network side
- Operating Ambient Temperature: 0℃ ~ 60℃
- Storage Temperature: -40℃ ~ 85℃
- Relative Humidity: 5% ~ 95%, non-condensing
- Mounting Form: DeltaV SIS rack plug-in card
- Built-in communication channel self-diagnosis function
- Protection Grade: IP20
Functional Features Galvanic isolation circuit isolates SIS safety network and DCS non-safety network to prevent electrical interference. Transmit SIS running status, fault alarm and safety trip event data to DeltaV DCS operator station. Receive non-safety diagnostic and configuration commands from DCS engineering workstation. Real-time self-diagnosis detects communication link break and internal hardware fault. Front panel LED indicators display communication link status and module fault status. Hot swap mechanical structure supports module replacement under permitted maintenance conditions.
Application Scenarios DeltaV SIS safety control cabinets in chemical plants, oil refineries, natural gas processing stations and power plants. It realizes data communication between DeltaV SIS safety instrumented system and DeltaV DCS distributed control system for safety event upload and equipment diagnosis.
Performance Parameters Isolation circuit blocks electrical interference between safety network and DCS network. Communication circuit maintains stable data transmission between SIS controller and DCS network. Self-diagnosis circuit detects communication failure and hardware fault instantly. Backplane bus achieves reliable high-speed data exchange with SIS safety controller. Module maintains stable continuous operation under rated working temperature range.
Material Composition Flame-retardant black engineering plastic front housing with LED indicators. Multi-layer flame-retardant glass-fiber epoxy printed circuit board. Network communication chips, isolation transformers and signal processing chips. Gold-plated copper alloy backplane connector with anti-oxidation coating. High-temperature resistant capacitors and signal isolation components.
Structural Features Compact plug-in card size matching standard DeltaV SIS rack slot dimension. Front panel integrates communication status LED and fault alarm LED indicators. Built-in guide rails and spring mechanical latch fix the module firmly inside SIS rack and resist cabinet vibration. Rear gold-plated multi-pin connector completes electrical connection with DeltaV SIS rack backplane. Shell is equipped with large-area heat dissipation slots to realize natural convection cooling inside closed safety control cabinet.
Working Principle VE3004 module communicates with SIS safety controller through SIS rack backplane bus and acquires safety system status, alarm and trip information. Internal galvanic isolation circuit separates safety SIS domain and non-safety DCS network domain. The module packages safety data and transmits data to DeltaV DCS control network. Non-safety diagnostic and configuration commands from DCS network pass through isolation circuit and transmit to SIS controller via backplane bus. Self-diagnosis circuit continuously monitors communication link and internal hardware state. When communication failure or hardware fault occurs, module triggers fault alarm and uploads alarm message to DeltaV system.
Installation Requirements Insert the module along rack guide rail into designated DeltaV SIS rack slot and fully lock mechanical latch. Connect network cable between module and DeltaV DCS control network. Reserve sufficient air circulation space around module, do not block heat dissipation slots on module shell. Complete network parameter configuration and communication link verification in DeltaV engineering workstation after hardware installation. Separate safety communication wiring from high-voltage power wiring to avoid electromagnetic coupling interference.
Precautions for Use Carry out anti-static protective measures during module handling; bare hands shall not directly touch gold-plated connector pins. Cut off rack power supply before performing module disassembly work. Verify communication link status after module replacement. Check communication status and alarm information in DeltaV operator station regularly. Do not disassemble module outer housing; internal circuit components have no on-site maintainable spare parts.
