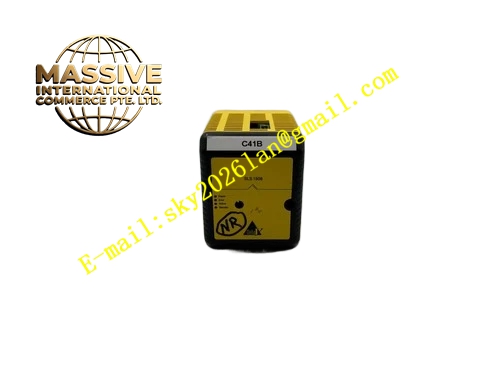

Emerson VS3202 / SLS1508
Technical Specifications:
- Brand: Emerson
- Model Number: VS3202
- Part Numbers: KJ2201X1-BA1 / 12P3162X162
- Product Type: DeltaV SLS 1508 Redundant Logic Solver with Terminal Block
- System Compatibility: Emerson DeltaV SIS
- Safety Certification: IEC 61508, SIL 3
- Input Voltage: 24 VDC ± 20%
- Input Power: 1.0 A plus field power (max 5.0 A total)
- Field Power: Up to 4 A (depending on channel and device)
- Output Current: Up to 2 A per channel
- Heat Dissipation: 24 W
- I/O Capacity: 16 digital inputs, 16 relay outputs
- Communication: RS-232, RS-485, Ethernet
- Programming Languages: Ladder Logic, Function Block Diagram, Structured Text
- Operating Temperature: –40°C to +70°C
- Humidity: 5% to 95%, non-condensing
- Shock Resistance: 10 g, ½ sine wave for 11 ms
- Vibration Resistance: 1 mm (5–16 Hz), 0.5 g (16–150 Hz)
- Airborne Contaminants: ISA-S71.04 Class G3
- Weight: Approximately 1200 g
Functional Features:
- Redundant Dual-CPU Architecture: Operates as a redundant pair with no master-slave relationship; fault switchover is bumpless and supports online replacement
- SIL 3 Compliance: Fully certified to IEC 61508 SIL 3 for the highest level of safety integrity
- 16-Channel Flexible I/O: Supports HART and discrete signals with 1500 VDC optical isolation
- Real-Time Safety Communication: Ensures reliable performance in critical safety applications
- Event Sequence Recording: 1 ms resolution timestamps for rapid identification of first-out faults
- ISA SSA Level 1 Certified: First safety system certified to IEC 62443 for cybersecurity
- HART Protocol Diagnostics: Real-time diagnostics of field instruments to reduce spurious trips
Application Scenarios:
- Oil and Gas: Emergency shutdown (ESD) systems, fire and gas detection systems
- Chemical Processing: Safety interlock systems for reactors and storage tanks
- Power Generation: Turbine protection and boiler safety systems
- Petrochemical: Pipeline safety monitoring and pressure relief systems
Material Composition:
- Industrial-grade electronic components
- High-quality multi-layer PCB
- Optical isolation components
- Modular metal enclosure
Structural Features:
- DeltaV standard rack-mountable module
- Backplane connector interface
- Front-panel terminal block for field wiring
- Status indicator LEDs
- Redundant communication ports (SISNet local peer bus and fiber optic ring)
Working Principle:
The SLS 1508 receives safety-critical input signals from field devices through its 16 digital input channels. The dual redundant CPUs independently execute the safety logic program and cross-check results. When a safety condition is detected, the module activates the appropriate relay outputs to initiate protective actions. The redundant architecture ensures that a single CPU failure does not compromise safety function execution.
Installation Requirements:
- Mount in a compatible DeltaV SIS rack
- Connect field wiring to the terminal block
- Establish redundant communication links via SISNet
- Ensure proper grounding and shielding
Usage Precautions:
- Verify SIL rating compatibility with the safety function requirements
- Perform regular proof testing as specified in the safety manual
- Ensure redundant pair synchronization before commissioning
- Follow IEC 61511 lifecycle management requirements
