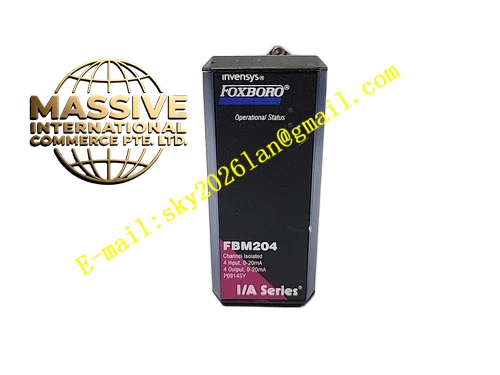

Foxboro FBM204
Technical Specifications
- Model Number: FBM204 (Part Number: P0914SY)
- Configuration: 8 channels of 0-20 mA Input / Output
- System Compatibility: Foxboro I/A Series
Functional Features
- Space Efficiency: Reduces the total number of modules required for paired measurement and control applications.
- Independent Channels: Each channel can be independently configured as either an input or an output.
- High Precision: Maintains high accuracy for both signal acquisition and control output.
Application Scenarios
Ideal for packaged equipment, skid-mounted control panels, and localized PID control loops.
Performance Parameters
- Signal Range: 0 to 20 mA DC for both input and output.
- Response Time: Fast update rates for responsive closed-loop control.
Material Composition
Industrial-grade components with robust output drivers capable of driving standard field loads.
Structural Characteristics
- Compact Design: Standard FBM width with dual-function channel density.
- Status LEDs: Visual indicators for power, communication, and active channels.
Working Principle
The module simultaneously digitizes incoming analog signals for monitoring and converts digital control setpoints to precise analog outputs, managing both directions of data flow over the redundant fieldbus.
Installation Requirements
Clearly label input and output terminals during wiring. Ensure proper power supply for the output loop.
Usage Precautions
Double-check terminal assignments to prevent connecting outputs to inputs. Perform loop checks after installation.
