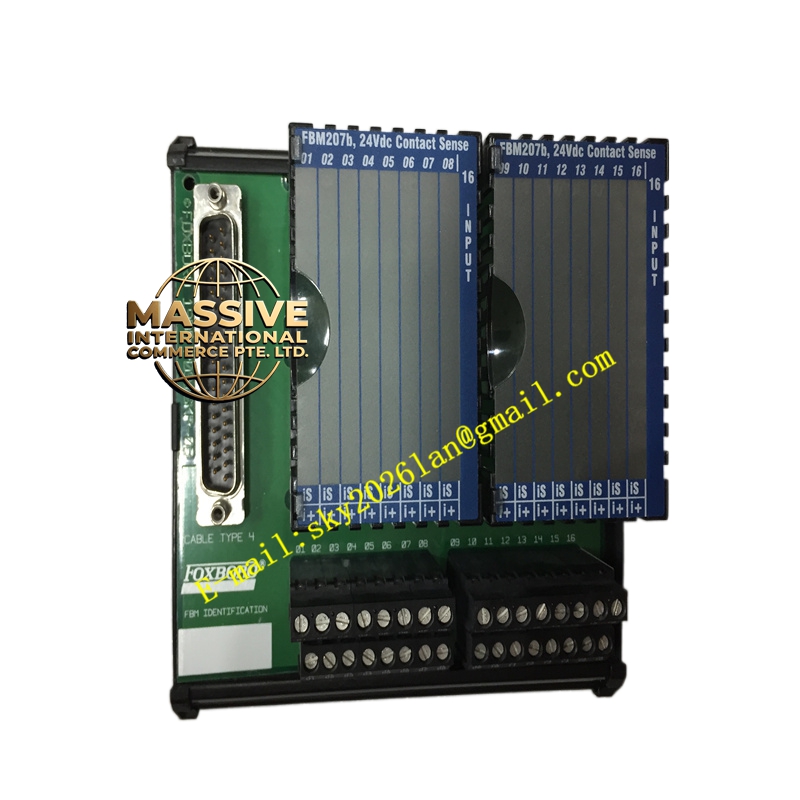

Foxboro FBM207B P0916JS
- Technical Specifications:
- Channels: 16 isolated digital inputs
- Input Voltage: 24 V DC contact sense
- Isolation: Channel-to-channel and channel-to-ground isolation

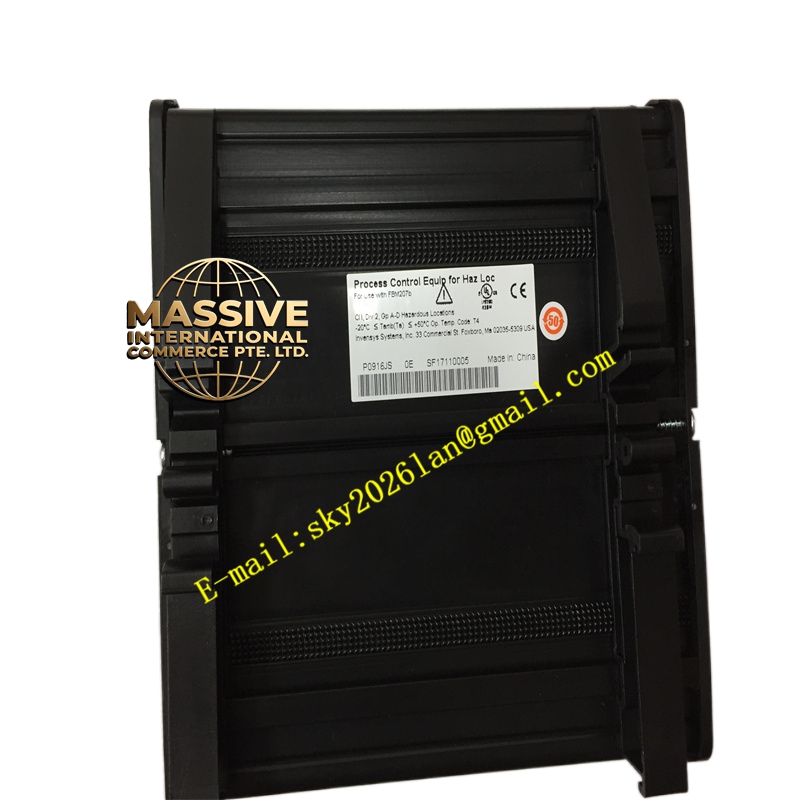

- Terminal Component: P0916JS (provides field wiring interfaces for the 16 inputs)
- Communication: Redundant 2 Mbps module fieldbus to FCM/FCP
- Power: 24 V DC; power dissipation approximately 2 W
- Environment: Operating temperature -20 °C to +60 °C; relative humidity 5% to 95% non-condensing
- Dimensions: Module approx. 10.4 cm × 4.5 cm × 11.4 cm; overall assembly varies
- Functional Features:
- Provides isolated digital inputs with filtering and diagnostics
- Simplified wiring through the P0916JS terminal component
- Hot-swappable design to minimize downtime
- Supports digital input functions with fast response
- Application Scenarios:
- Monitoring contact states from field devices such as limit switches and relays
- Used in process control and safety interlock systems
- Suitable for applications requiring robust digital input acquisition
- Performance Parameters:
- Fast response to changes in input state
- Reliable operation under G3 environmental conditions
- Material and Structural Characteristics:
- Housing and terminal: Industrial-grade materials designed for durability
- Connector interfaces: High-density connectors for backplane and terminals
- Working Principle:
- The terminal block brings field signals to the module, where each input is optically isolated and conditioned, with the resulting state reported over the module fieldbus.
- Installation Requirements:
- Install the module onto the baseplate/terminal assembly as specified
- Connect field devices to the P0916JS terminal following the wiring diagram
- Ensure proper grounding and supply voltage
- Usage Notes:
- Ensure field contact ratings match the 24 V DC sensing requirements
- Check that terminal connections are secure and correctly polarized
- Perform periodic checks of terminal blocks for corrosion or looseness
