Foxboro FBM207

Foxboro FBM207

Product Introduction

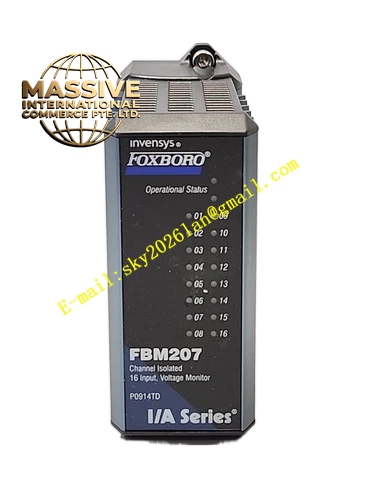

The FBM207 is the base model of the voltage monitoring input module family. It is a highly versatile 16-channel module capable of monitoring a wide range of DC and AC voltages, making it a fundamental component for interfacing diverse field signals with the I/A Series control system.

Request Quote
Category:

Description

Foxboro FBM207

Technical Specifications

  • Product Type: 16-Channel Voltage Monitor.
  • Supported Voltages: 15-60 VDC, 120 VAC/125 VDC, 240 VAC.
  • Channel Count: 16 isolated channels.
  • Fieldbus Interface: Redundant 2 Mbps communication.

Functional Features

  • Multi-Voltage Support: Can monitor everything from low-level DC control voltages to standard AC line voltages.
  • Signal Conditioning: Utilizes Terminal Assemblies (TAs) with voltage attenuation and optical isolation for high-voltage inputs.
  • Pulse Counting: Capable of accurate pulse counting up to 250 Hz with no missing pulses.
  • Sequence of Events (SOE): Supports GPS-synchronized time stamping for precise fault analysis.

Application Scenarios
Essential for monitoring motor control centers, transformer statuses, AC/DC power supplies, and any field device that provides a dry contact or voltage-based status signal.

Performance Parameters

  • Logic One (ON) Voltage: 15 to 60 VDC.
  • Logic Zero (OFF) Voltage: 0 to 5 VDC.
  • Input Current: 1.4 mA (typical) at 5-60 VDC.
  • Source Resistance Limits: 1 kΩ max (ON state), 100 kΩ min (OFF state).

Material Composition
Features a durable extruded aluminum shell for heat dissipation and physical protection. Internal circuitry includes high-voltage resistors and optical isolators rated for industrial surge protection.

Structural Characteristics
Standard FBM form factor with a front-panel LED array. The module slides onto the baseplate and locks securely, allowing for hot-swapping without disturbing field wiring.

Working Principle
Depending on the connected Terminal Assembly, the module either directly monitors DC voltage levels or uses internal attenuation and isolation to safely measure AC or high-voltage DC signals. The conditioned signal is then digitized and sent to the controller.

Installation Requirements
Select the appropriate Terminal Assembly (TA) based on the field voltage level. High-voltage TAs provide necessary attenuation and isolation. Ensure the baseplate is properly grounded.

Usage Precautions

  • Always match the TA to the field voltage; using a low-voltage TA on a high-voltage signal will destroy the module.
  • Be aware of the input impedance when monitoring high-impedance sources.
  • Regularly inspect terminal connections for tightness to prevent arcing.
