Description

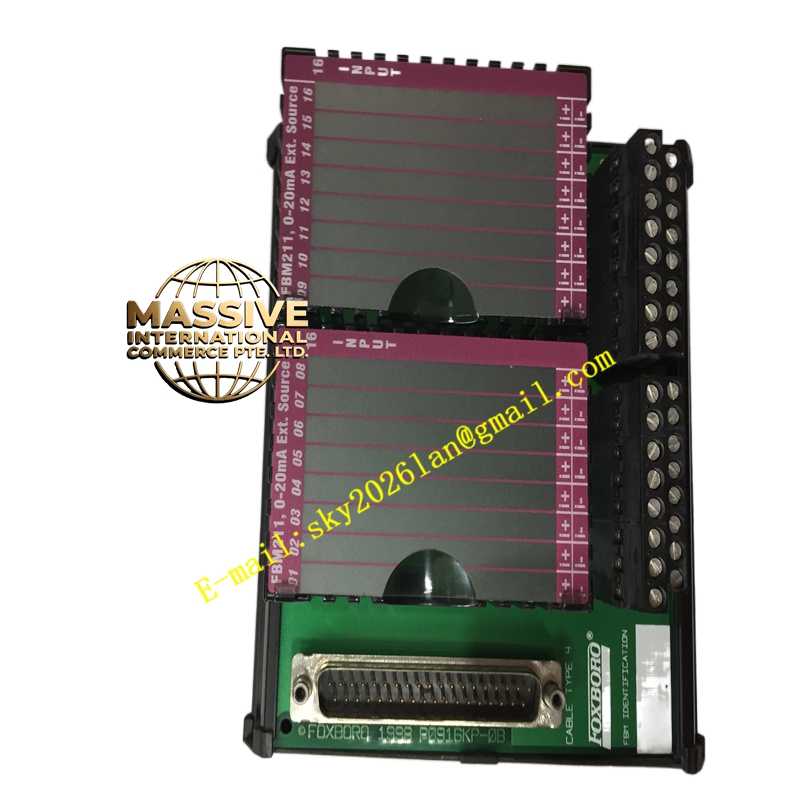

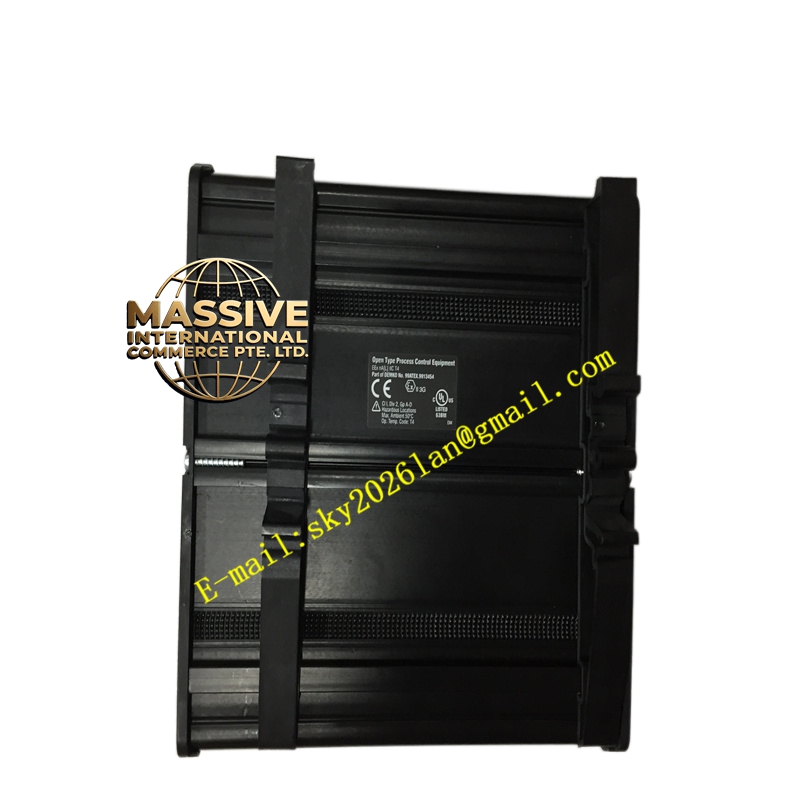

Foxboro FBM211 P0916JT Technical Specifications:
- Module Type: Analog Input (AI) Interface Component.
- Channel Capacity: Supports multi-channel analog inputs, typically 16 channels.
- Signal Type: Primarily designed for standard 4–20 mA or 0–20 mA current signals.
- Power Configuration: P0916JT designation indicates an externally powered terminal configuration.
- Conversion: Internal Analog-to-Digital (A/D) conversion with high resolution.
Functional Features:
- High Isolation: Each channel features excellent galvanic isolation design to provide strong anti-interference capabilities.
- Direct Sensor Connection: Can be directly connected to industrial transmitters for pressure, temperature, and flow.
- Signal Stability: Maintains signal integrity and stability in complex industrial environments over long-term continuous operation.
- Clear Wiring Structure: Designed with clear terminal layouts to facilitate on-site construction and maintenance.
Application Scenarios:
- Widely applied in petrochemical, electric power, and chemical industries.
- Used for continuous monitoring and closed-loop control of critical process variables.
- Integrates field devices with upper-level control systems for advanced monitoring and analysis.
Performance Parameters:
- Accuracy: High-precision signal conditioning with minimal drift.
- Update Rate: Fast cyclic scanning to ensure real-time data availability.
- Noise Rejection: High common-mode and normal-mode rejection ratios.
Material Composition & Structural Characteristics:
- PCB: Industrial-grade multi-layer printed circuit board with conformal coating.
- Housing: Ruggedized module enclosure compatible with I/A Series system racks.
- Connectors: Mates with specific field terminal modules for secure field wiring.
Working Principle: The module receives low-level analog signals from field transmitters. Internal signal conditioning circuits amplify and filter these signals before they are converted into digital values by precision A/D converters. The digital data is then packaged and transmitted over the I/A Series communication bus to the Field Control Processor (FCP) for logic execution.
Installation Requirements:
- Mount securely onto the designated I/A Series system rack or base.
- Connect field wiring through the appropriate external terminal module.
- Ensure proper routing of signal cables away from high-voltage power lines to maintain isolation.
Usage Precautions:
- Verify the external power supply voltage and polarity before energizing the P0916JT module.
- Ensure all channel isolation boundaries are respected during field wiring.
- Use shielded twisted-pair cables for all analog signal connections to prevent electromagnetic interference.
