Description

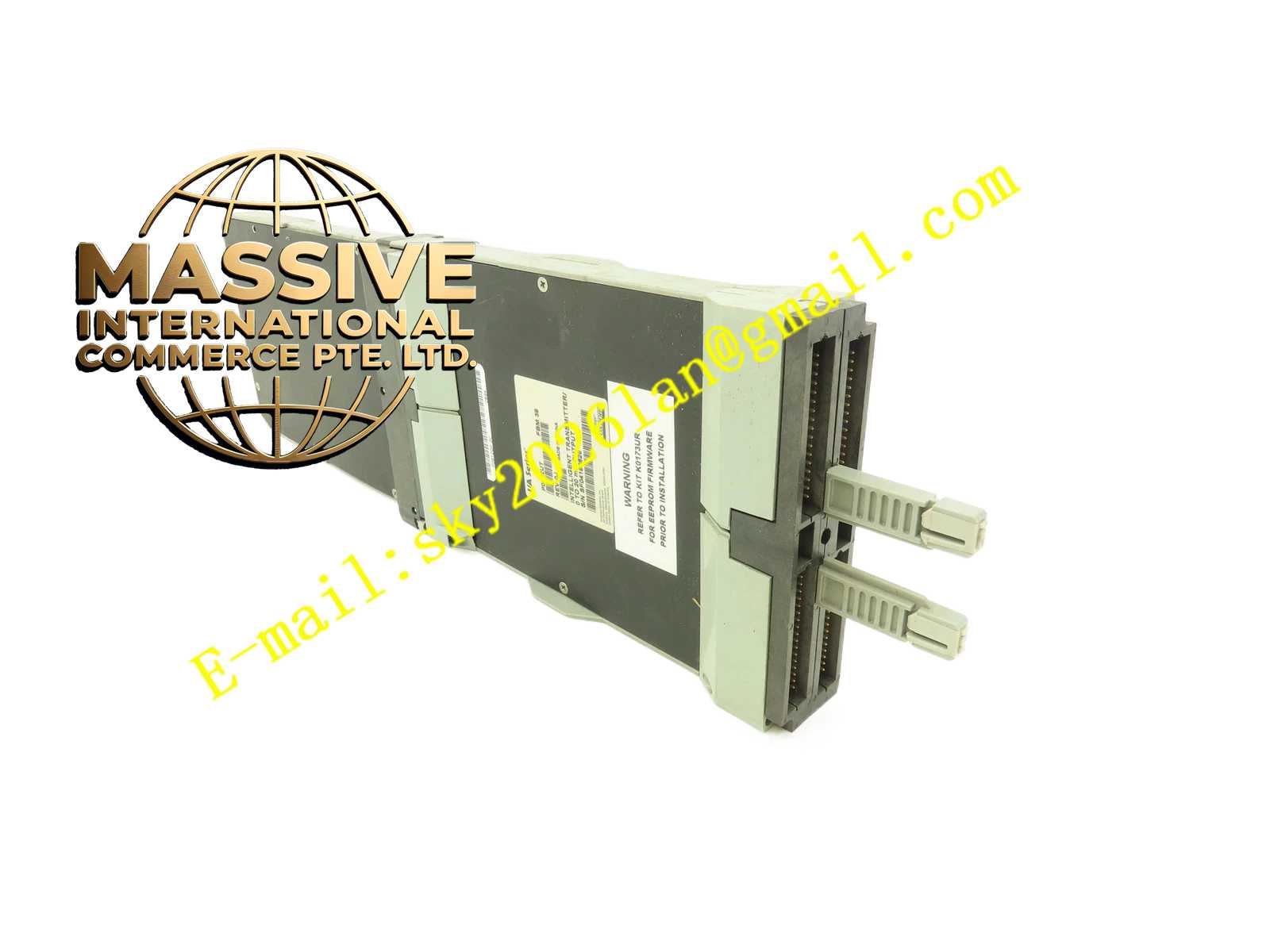

Foxboro FBM39
Technical Specifications
- Channel Configuration: 4 Analog Inputs (AI) and 4 Analog Outputs (AO).
- Input Signal: Supports smart transmitter signals and 0-20 mA standard signals.
- Output Signal: 0-20 mA analog output.
- Bus Interface: Redundant 2 Mbps fieldbus.
Functional Features
- High-Precision Conversion: Factory-calibrated, requiring no manual field adjustment.
- Graphical Configuration: Supports highly intuitive engineering environments with real-time cyclic plotting.
- Universal Database: Integrates system, control, display, and field device configurations in a unified tool.
- Flexible Expansion: Can be used as a primary or expansion module.
Application Scenarios
Widely used in oil and gas, chemical processing, power generation, and water treatment for monitoring and regulating continuous process variables like temperature, pressure, and flow.
Performance Parameters
- Signal Accuracy: High-precision analog acquisition and output for stringent process control.
- Communication Reliability: Dual transceiver design supporting redundant fieldbus communication.
- Self-Diagnostics: Built-in power safety and online self-test circuits reporting module status in real time.
Material Composition
Utilizes industrial-grade flame-retardant materials and high-reliability electronic components. Circuit boards are coated with conformal coating to resist moisture, dust, and corrosive gases.
Structural Characteristics
- Jumper-Free Design: All functions configured via software, requiring no local manual controls or jumpers.
- Compact Size: Suitable for high-density installation in standard control cabinets.
- Status Indicators: Equipped with operating status and channel status indicator lights.
Working Principle
The FBM39 reads digital signals from smart transmitters or collects 4-20 mA analog signals via its internal digital processor, converting them into engineering values in the system database. It receives controller output commands and outputs corresponding 0-20 mA current signals to drive actuators via a high-precision D/A converter.
Installation Requirements
- Must be correctly connected to the A/B dual channels of the redundant fieldbus.
- Analog signal wires must use shielded twisted pairs with single-point grounding.
- Ensure module power supply is stable and meets redundancy requirements.
Usage Precautions
- Avoid routing analog signal wires parallel to high-voltage power lines.
- Ensure HART or fieldbus protocol versions are compatible when configuring smart transmitters.
- Output channels can be configured to fail-safe values (e.g., hold, zero, or full scale) upon module failure.
