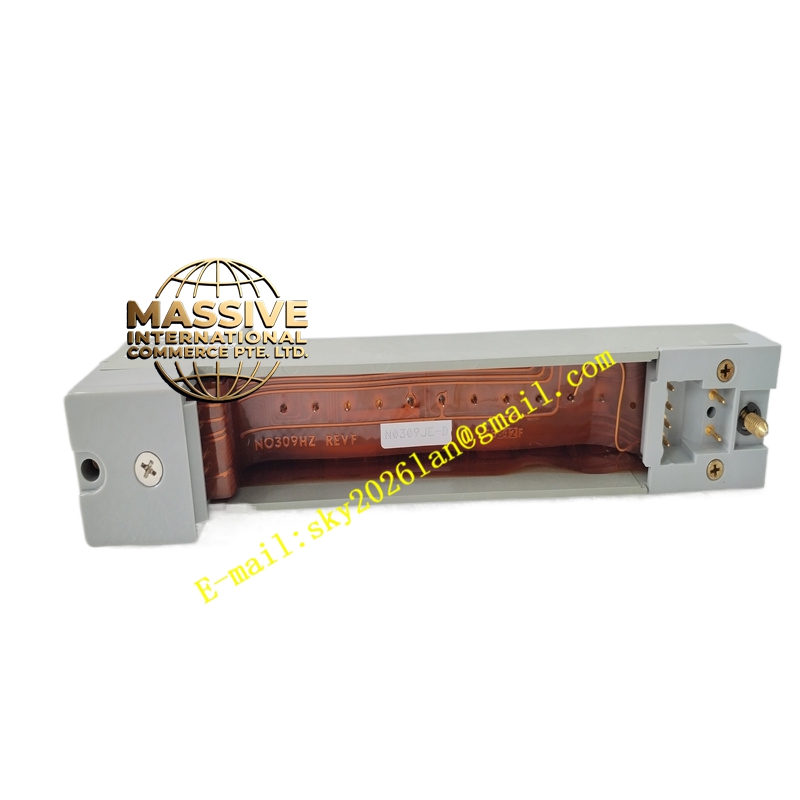

Foxboro N-2AX+DIO

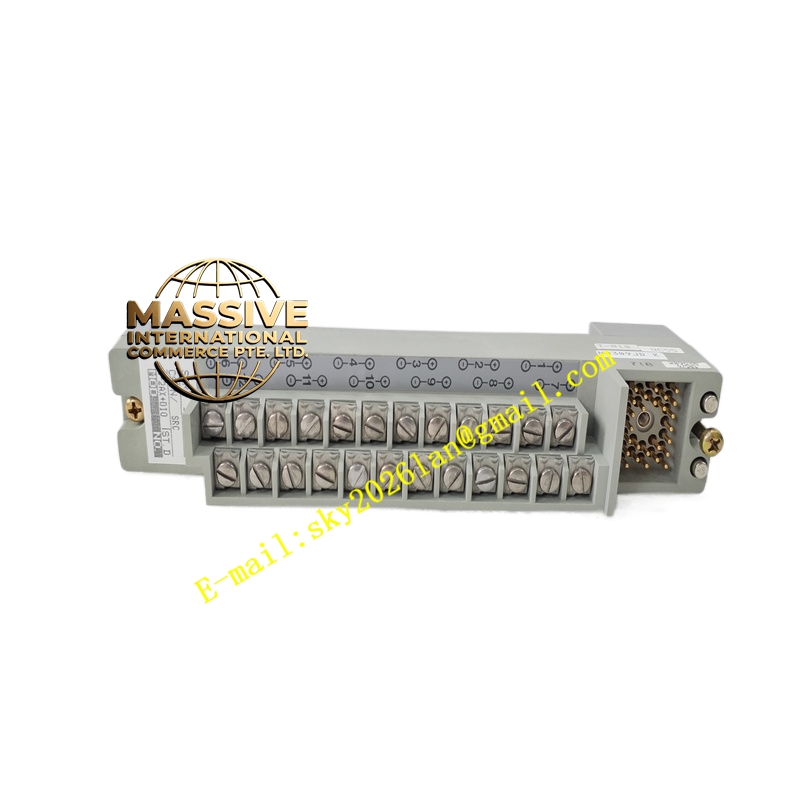

Foxboro N-2AX+DIO - Image 2

Foxboro N-2AX+DIO

Product Overview: The Foxboro N-2AX+DIO is a discrete I/O module designed for the Foxboro I/A Series. It provides a combination of digital inputs and outputs, enabling the control system to monitor switch states, pushbuttons, and relays, while simultaneously controlling indicator lights, solenoids, and other discrete devices.

Request Quote
Category: SKU: Foxboro N-2AX+DIO

Description

Foxboro N-2AX+DIO Technical Specifications:

  • I/O Type: Combined Digital Input (DI) and Digital Output (DO).
  • Voltage Levels: Typically 24 VDC (verify specific variant).
  • Channel Count: Multiple DI and DO channels per module.
  • Isolation: Opto-isolated channels for noise immunity and safety.

Functional Features:

  • High-Speed Switching: Fast response times for time-critical discrete control.
  • Status Feedback: LED indicators for each channel showing active/inactive states.
  • Diagnostic Capabilities: Open wire detection and short circuit protection on outputs.
  • Sink/Source Configuration: Flexible wiring options for different field devices.

Application Scenarios:

  • Machine control and automation.
  • Safety system permissives and interlocks.
  • Alarm annunciation and status monitoring.
  • Batch processing and sequencing.

Performance Parameters:

  • Response Time: Millisecond-level switching and sensing.
  • Current Rating: Sufficient drive capability for standard industrial loads.
  • Reliability: Solid-state design with no moving parts.

Material Composition & Structural Characteristics:

  • Enclosure: Compact module housing with front-panel labeling.
  • Components: High-reliability optocouplers, MOSFETs, and protection diodes.
  • Connectors: Standard I/A Series backplane connector and field wiring terminals.

Working Principle: Digital inputs are conditioned and isolated before being read by the module’s logic circuit, which updates the input image in memory. Digital outputs are driven by the host controller’s output image through isolated driver circuits. Protection circuits prevent damage from field faults.

Installation Requirements:

  • Slot: Install in a compatible I/A Series I/O slot.
  • Wiring: Observe polarity for DC inputs and outputs; use appropriate wire gauge.
  • Load Protection: Use external snubbers or flyback diodes for inductive loads.

Usage Precautions:

  • Load Limits: Do not exceed output current ratings; use interposing relays for heavy loads.
  • Polarity: Reverse polarity can damage input circuits; verify wiring before power-up.
  • Maintenance: Periodically check terminal tightness and inspect for signs of overheating.
