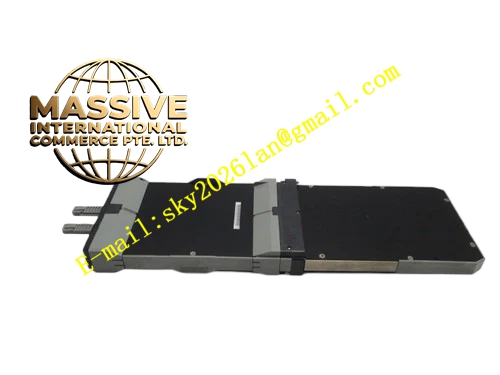

Foxboro P0400YJ
Technical Specifications
- Component Model: P0400YJ
- System Platform: Foxboro I/A Series DCS
- Function: RTD Signal Conditioning and Conversion
- Communication: Standard Industrial Fieldbus Protocols
Functional Features
- Data Integrity Assurance: Employs bit-by-bit matching technology to guarantee accurate data transmission.
- Constant Current Excitation: Built-in precision constant current source for accurate RTD resistance measurement.
- Software Integration: Seamlessly integrates with Foxboro InTouch and Wonderware System Platform.
- Intelligent Diagnostics: Built-in real-time diagnostics for RTD open circuit detection.
Application Scenarios
Widely used in medium-to-low temperature precision measurement including tank temperatures, pipeline fluid temperatures, and pharmaceutical processes.
Performance Parameters
- Electrical Isolation: High-impedance isolation between channels and the bus.
- Response Time: Fast analog sampling and update rate.
- Protection Rating: IP20
Material Composition
Industrial-grade flame-retardant housing with precision constant current source and resistor networks. Terminal blocks feature premium conductive materials.
Structural Characteristics
Standard fieldbus module design with clear channel labeling and LED indicators. Secure backplane connector ensures tight mechanical and electrical coupling.
Working Principle
Constant current excites the RTD, voltage drop is measured to calculate resistance, then linearized per RTD tables and converted to temperature values for bus transmission.
Installation Requirements
Mount on a compatible FBM baseplate. Use shielded twisted pair with cabinet-side single-point grounding.
Precautions for Use
Never apply voltage or current signals. Verify RTD type and wire configuration match software settings.
