Description

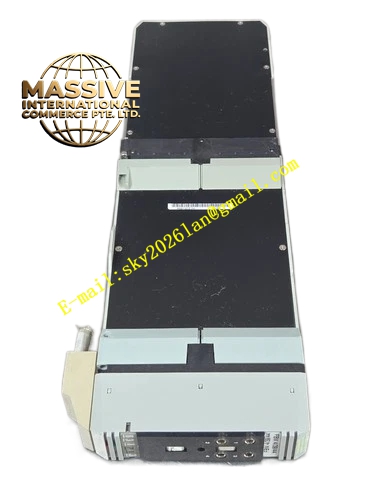

Foxboro P0400YM
Technical Specifications
- Component Model: P0400YM
- System Platform: Foxboro I/A Series DCS
- Function: Discrete DC Input Expansion Signal Conditioning
- Communication: Standard Industrial Fieldbus Protocols
Functional Features
- Seamless Expansion: Provides additional 16-channel DC I/O when paired with base FBM modules.
- Data Integrity Assurance: Employs bit-by-bit matching technology to guarantee accurate data transmission.
- Software Integration: Seamlessly integrates with Foxboro InTouch and Wonderware System Platform.
- Intelligent Diagnostics: Built-in real-time diagnostics for wire break and short circuit detection.
Application Scenarios
Large valve array monitoring, complex safety interlock systems, and distributed remote I/O stations requiring extensive discrete points.
Performance Parameters
- Electrical Isolation: High-impedance isolation between channels and the bus.
- Response Time: Millisecond-level state capture for high-speed sequential control.
- Protection Rating: IP20
Material Composition
Industrial-grade flame-retardant housing with high-reliability optocoupler isolation circuits. Terminal blocks feature premium conductive materials.
Structural Characteristics
Standard fieldbus module design with clear channel labeling and LED indicators. Secure backplane connector ensures tight mechanical and electrical coupling.
Working Principle
External DC signals or contact closures pass through optocoupler isolation and level conversion, converting to digital logic levels for redundant fieldbus transmission.
Installation Requirements
Mount on a compatible FBM baseplate, typically adjacent to base FBM modules. Use shielded cables with cabinet-side single-point grounding.
Precautions for Use
Verify signal types and terminal definitions. Never exceed rated voltage limits. Disable corresponding node in software before replacement.
