Description

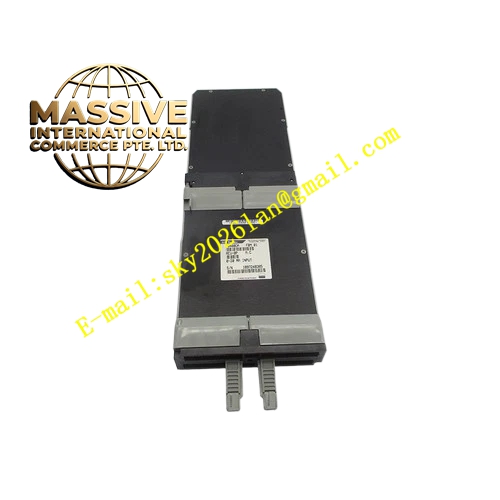

Foxboro P0400YN
Technical Specifications
- Component Model: P0400YN (FBM12)
- Channel Configuration: 16 independent discrete DC input channels
- Signal Type: Dry contacts or low-voltage DC status
- Bus Interface: 2 Mbps Redundant HDLC Fieldbus
Functional Features
- Seamless Expansion: Provides additional 16-channel DC I/O when paired with base FBM modules.
- High Reliability Verification: Bit-by-bit matching technology ensures absolute data accuracy.
- Complete Electrical Isolation: Full isolation between channels and system bus prevents ground loops.
- Online Diagnostics: Wire break detection and short circuit protection.
Application Scenarios
Large valve array monitoring, complex safety interlock systems, and distributed remote I/O stations requiring extensive discrete points.
Performance Parameters
- Response Time: Millisecond-level state capture for high-speed sequential control.
- Protection Rating: IP20.
- Environmental Tolerance: G3 harsh environment compliant.
Material Composition
Industrial-grade flame-retardant housing with high-reliability optocoupler isolation circuits. Premium conductive terminal blocks ensure long-term durability.
Structural Characteristics
Standard fieldbus module with clear channel labeling and LED indicators. Precision backplane connector for secure mounting.
Working Principle
External DC signals or contact closures pass through optocoupler isolation and level conversion, converting to digital logic levels for redundant fieldbus transmission.
Installation Requirements
Mount on compatible FBM baseplate, typically adjacent to base FBM modules. Use shielded cables with cabinet-side single-point grounding.
Precautions for Use
Verify signal types and terminal definitions. Never exceed rated voltage limits. Disable corresponding node in software before replacement.
