Description

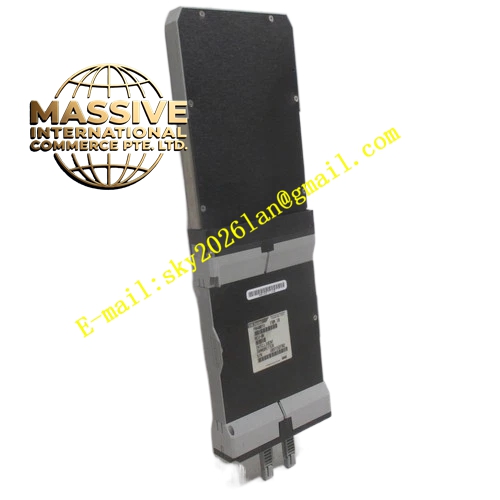

Foxboro P0400YV
Technical Specifications
- Module Model: P0400YV (FBM18)
- Channel Configuration: 8 Analog Input (AI) channels
- Signal Type: 4-20mA with HART communication
- Bus Interface: 2 Mbps Redundant Fieldbus
Functional Features
- HART Communication: Supports bidirectional HART protocol for device configuration and diagnostics.
- High-Precision Measurement: Built-in high-resolution A/D converter for accurate current signal acquisition.
- Complete Electrical Isolation: Channel-to-channel and channel-to-bus isolation prevents ground loops.
- Online Diagnostics: Supports wire break detection and out-of-range alarms.
Application Scenarios
Widely used for acquiring signals from smart pressure transmitters, flow meters, and level gauges requiring device diagnostics.
Performance Parameters
- Measurement Accuracy: High-precision A/D conversion with minimal error.
- Update Rate: All 8 channels updated synchronously within one scan cycle.
- Protection Rating: IP20.
Material Composition
Robust industrial-grade housing with high-precision amplifiers and precision resistor networks. Conformal-coated PCBs for environmental protection.
Structural Characteristics
Standard 8-channel FBM module with front-panel channel status LEDs. Precision backplane connector supports hot-swapping.
Working Principle
External 4-20mA signals are converted to voltage across precision resistors, amplified, and digitized. HART signals are superimposed and demodulated for bidirectional communication.
Installation Requirements
Signal wires must use shielded twisted pairs with shields grounded at the cabinet side only. Observe correct polarity for current loop connections.
Precautions for Use
Never apply voltage signals to this module. Ensure transmitter type matches software configuration when replacing sensors.
