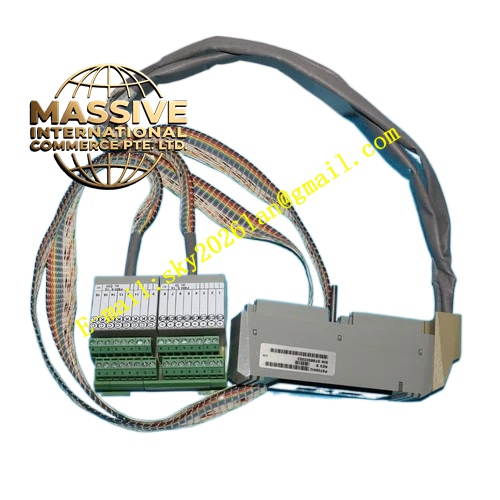

Foxboro P0700AH
Technical Specifications
- Module Type: P0700AH
- Channel Configuration: 16 independent input channels
- Signal Type: 120 Vac discrete status input
- Bus Interface: 2 Mbps redundant HDLC fieldbus
Functional Features
- High-Reliability Verification: Bit-by-bit matching technology guarantees absolute data accuracy.
- Complete Electrical Isolation: Full isolation between channels and the fieldbus prevents ground loop interference.
- Online Diagnostics: Supports open-wire detection, short-circuit protection, and real-time health status reporting.
- Hot-Swappable: Supports online module replacement without disrupting system operation.
Application Scenarios
Ideal for monitoring various industrial process variables, including AC motor statuses, AC valve positions, and high-voltage switch states.
Performance Parameters
- Response Time: Millisecond-level state capture.
- Ingress Protection: IP20 rated.
- Environmental Tolerance: Compliant with G3 severe environment standards.
Material Composition
High-strength flame-retardant industrial plastic shell. Internal PCBs are conformal-coated, and terminal blocks utilize gold-plated or tin-plated copper.
Structural Characteristics
Standard FBM form factor with clear channel silkscreen markings and LED status indicators. High-density backplane connectors support hot-swappable operations.
Working Principle
Incoming 120 Vac signals are isolated and amplified, converted into digital signals via high-precision circuitry, and transmitted to the controller over the redundant fieldbus.
Installation Requirements
Must be installed on a compatible FBM baseplate. Field wiring requires shielded cables, and the shield must be single-point grounded at the control cabinet side.
Usage Precautions
Verify signal types and terminal definitions before wiring. The node must be placed in “Maintenance Mode” via software before module replacement.
