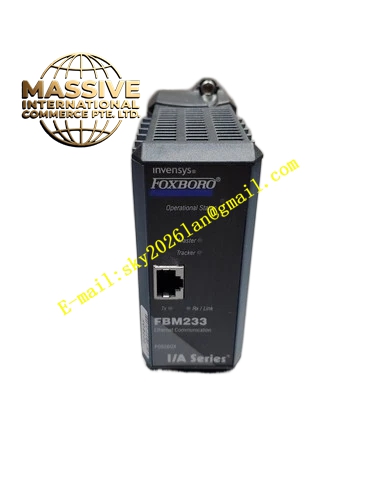

Foxboro P0926GX
Technical Specifications
- Communication Rate: Redundant 10 Mbps or 100 Mbps Ethernet.
- Device Capacity: Communicates with up to 64 field devices per port.
- Data Connections: Supports up to 2000 DCI block connections.
- Working Voltage: 12.5-42VDC.
- Data Capacity: 16MB internal memory.
Functional Features
- Redundant Communication: Provides dual Ethernet ports for seamless failover, eliminating single points of failure in field communication.
- Software Configurability: I/O software drivers are downloadable from a protocol library, supporting a wide range of third-party devices.
- System Integration: Directly integrates field device data into the I/A Series control database for comprehensive process management.
- High Reliability: Designed to operate in G3 (harsh) environments with robust electromagnetic interference immunity.
Application Scenarios
Ideal for critical process control applications where communication downtime is unacceptable, such as in oil and gas pipelines, nuclear power auxiliary systems, and high-value chemical batch processes.
Performance Parameters
- Operating Temperature: 0°C to 60°C.
- Weight: 0.35 kg.
- Certification: CE certified.
- Scan Rate: Controller access to FBM data as fast as 500 ms.
Material Composition
Constructed with high-quality, flame-retardant industrial plastics and conformal-coated printed circuit boards to protect against moisture, dust, and corrosive gases.
Structural Characteristics

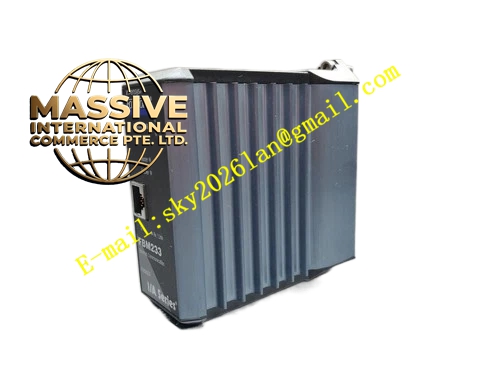

Shares the same compact form factor as other FBM200 series modules. Features two RJ-45 Ethernet ports on the front panel for redundant connections, along with comprehensive status indication LEDs for power, link, and activity.
Working Principle
The FBM233 operates similarly to the FBM232 but manages two independent Ethernet links. It continuously monitors the health of both links. If the primary link fails, it instantly switches to the secondary link without interrupting data flow to the DCS controller. It translates field protocols into standard DCI data types (analog/digital I/O) for the control system.
Installation Requirements
Must be connected to two separate Ethernet switches or networks to achieve true redundancy. Requires a compatible Foxboro controller (e.g., FCP270, CP60) and appropriate termination modules.
Usage Precautions
- Verify that both redundant network paths are correctly configured and physically separated.
- Do not mix redundant and non-redundant modules in the same redundant group without proper system configuration.
- Perform regular redundancy switching tests during maintenance windows to validate failover functionality.
