Description

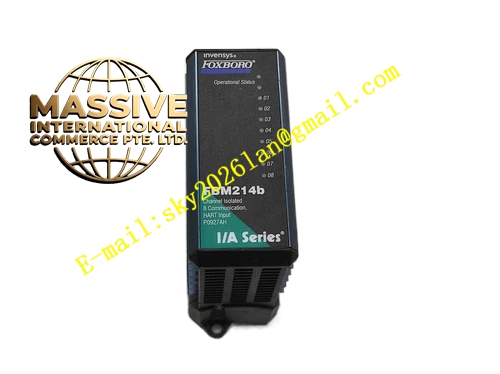

Foxboro P0927AH
Technical Specifications
- Part Number: P0927AH.
- Type: Fieldbus I/O Module.
- Signal Types: Supports standard industrial signals (4-20 mA, 0-10 V, discrete).
- Bus Interface: 2 Mbps Redundant Fieldbus.
Functional Features
- Versatile I/O: Flexible configuration for multiple signal types.
- Galvanic Isolation: Protects control system from field surges and ground loops.
- Local Diagnostics: LED indicators for power, communication, and channel status.
- Rugged Construction: Designed for long-term reliability in harsh environments.
Application Scenarios
General-purpose I/O interfacing in process control, manufacturing, and infrastructure monitoring. Ideal for connecting standard field instruments to the DCS.
Performance Parameters
- Accuracy: ±0.1% of span or better.
- Update Rate: Configurable scan rates.
- Power Consumption: Low power design.
Material Composition
Industrial-grade materials with conformal-coated electronics. High-quality terminal blocks.
Structural Characteristics
Compact, baseplate mountable design. Clear labeling and intuitive LED indicators.
Working Principle
Conditions field signals, converts to digital for bus transmission, and converts digital commands to analog outputs, maintaining isolation and monitoring for faults.
Installation Requirements
Mount on compatible baseplate. Use shielded twisted-pair cabling. Ensure proper shielding and grounding.
