Description

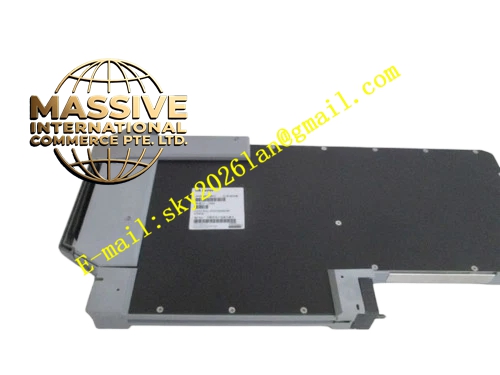

Foxboro P0961BC-CP40B
Technical Specifications
- Processor Architecture: 32-bit RISC processor.
- Clock Speed: 400 MHz.
- Memory Capacity: 512 MB RAM, 2 GB Flash.
- Control Execution: Less than 100 ms scan time (typical).
- I/O Capacity: Up to 4096 points.
- Communication: Dual Ethernet, ControlNet, DeviceNet.
- Power Supply: 24V DC via backplane.
- Power Consumption: Less than 15W.
- Operating Temperature: 0°C to +60°C.
- MTBF: Greater than 150,000 hours.
- Certifications: UL, cULus, CE, ATEX, SIL 3.
Functional Features
- Advanced Processor Architecture: Utilizes a multi-core processing architecture that separates control execution from communication tasks, ensuring deterministic performance even during network congestion.
- High-Availability Design: Features seamless redundancy with automatic failover. Maintains synchronized memory and register states with its redundant partner, enabling transition times under 100 ms without process disruption.
- Comprehensive Integration: Features extensive communication interfaces supporting multiple industrial networks simultaneously, simplifying system architecture and reducing latency.
- Built-in Self-Diagnostics: Continuously monitors processor health, memory integrity, and communication status, providing early warnings of potential issues.
Application Scenarios
Deployed in large petrochemical complexes (e.g., continuous catalytic cracking units) and combined cycle power plants for gas turbine control. It is ideal for managing critical control loops where system availability directly impacts production output and safety.
Performance Parameters
- Failover Time: Less than 100 ms.
- Control Loop Execution: Achieves 5 ms execution times for rapid load changes.
- System Availability: Capable of achieving 99.999% availability in redundant configuration.
Material Composition
Housed in a rugged, industrial-grade enclosure designed to withstand harsh environments, high dust, and strong electromagnetic interference. Internal components are conformal-coated for long-term reliability.
Structural Characteristics
Compact modular form factor designed for rack or cabinet installation. Features front-panel status LEDs and standard backplane connectors for seamless integration with the I/A Series platform.
Working Principle
The module executes PID loops, sequence control, and safety interlocks with millisecond precision. Its real-time operating system guarantees consistent scan times, while hardware-accelerated floating-point units handle complex mathematical calculations required for advanced process control.
Installation Requirements
Requires proper grounding and installation in a climate-controlled control cabinet. Must be connected to redundant power supplies and dual Ethernet networks to maximize fault tolerance.
Usage Precautions
Always verify redundancy synchronization status before performing maintenance. Ensure firmware versions are compatible across redundant pairs. Handle with strict ESD precautions during installation.
