Description

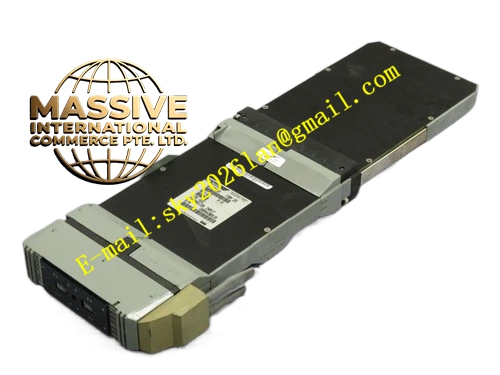

Foxboro PM900NX
Technical Specifications
- Processor: 32-bit Industrial-grade RISC Processor
- Execution Speed: 0.1 µs/boolean, 0.5 µs/floating-point
- Memory Capacity: 8MB Program Memory, 4MB Data Memory
- Connectivity: Ethernet 10/100BaseTX, ControlNet, RS-232
Functional Features
- Massive Data Handling: 12MB total memory supports complex PID loops, advanced regulatory control, and extensive historical data buffering.
- Redundant Communication: Supports multiple protocols and redundant network configurations to ensure zero downtime.
- System Compatibility: Fully compatible with the entire Foxboro I/A Series I/O ecosystem and Wonderware System Platform.
- Harsh Environment Ready: Die-cast aluminum housing protects against severe EMI and high dust concentrations.
Application Scenarios
Deployed in large-scale continuous and batch process control applications, including chemical reactors, distillation columns, and utility management systems.
Performance Parameters
- Power: 24VDC supply, 10W consumption, supports redundant power configuration.
- Dimensions & Weight: 140mm × 165mm × 45mm, 0.6kg.
- Temperature Range: 0℃ to 60℃ operating, -40℃ to 85℃ storage.
Material Composition
Die-cast aluminum chassis provides excellent heat dissipation and EMI shielding. Internal components are conformally coated for moisture and chemical resistance.
Structural Characteristics
Rugged industrial design with secure locking mechanisms for backplane connection. Front panel includes diagnostic LEDs for quick troubleshooting.
Working Principle
The controller executes cyclic scan tasks, reading inputs from the fieldbus, executing user-defined control logic at microsecond speeds, and updating outputs while maintaining continuous communication with operator stations.
Installation Requirements
Mount in a climate-controlled control cabinet. Connect both primary and redundant power supplies. Ensure Ethernet cables meet industrial shielding standards.
Precautions for Use
Do not operate in environments exceeding IP20 protection without additional enclosure. Regularly verify redundant power supply functionality. Follow strict ESD precautions during handling.
