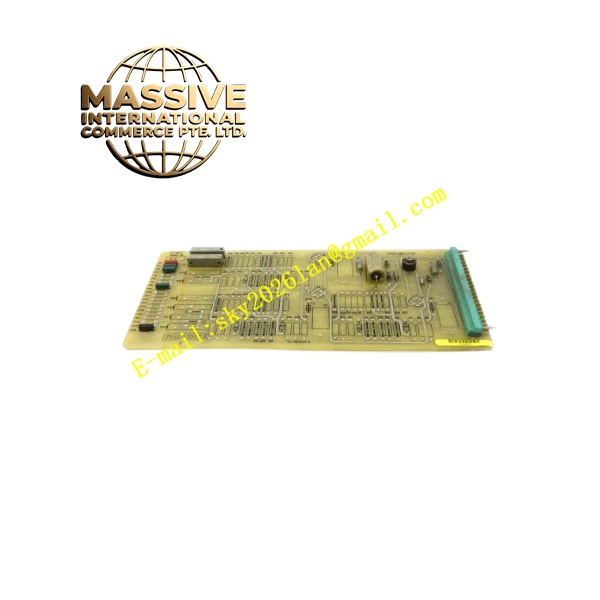

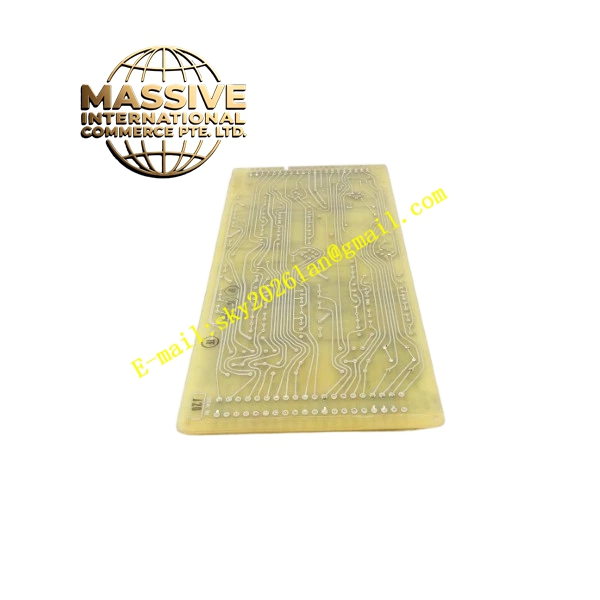

GE 7556D10G1
Technical Specifications:
- Brand: General Electric (GE)
- Model: 7556D10G1
- Product Type: Logic / Control Circuit Board
- Processing: Microprocessor or discrete logic based
Functional Features:
- Logic Execution: Processes discrete inputs to execute complex control sequences and safety interlocks.
- Signal Translation: Converts proprietary sensor signals to standard digital inputs for the main controller.
- Local Indication: Features onboard LEDs to display logic states, fault conditions, and communication status.
Application Scenarios:
Found in auxiliary control panels, safety interlock systems, and sub-component controllers within large turbine, generator, or manufacturing packages.
Performance Parameters:
- Scan Time: Millisecond-level logic execution for fast-acting safety and control responses.
- Input Immunity: High noise immunity on discrete inputs to prevent false tripping in electrically noisy industrial environments.
Material Composition:
Industrial-grade ICs, opto-isolators for input/output protection, and gold-plated connector fingers for reliable mating.
Structural Characteristics:
Standard board dimensions with alignment pins, captive screws, and clear silkscreen labeling for easy component identification and troubleshooting.
Working Principle:
Reads the state of field inputs through isolation circuits, executes the programmed logic or hardwired relay logic, and energizes output relays or solid-state switches accordingly.
Installation Requirements:
Align guide pins carefully before seating the board to prevent bent connector pins. Secure with mounting hardware to ensure proper grounding.
Usage Precautions:
Check the revision level against the system manual before installation to ensure software/firmware compatibility. Handle by the edges only to avoid ESD damage.
