Description

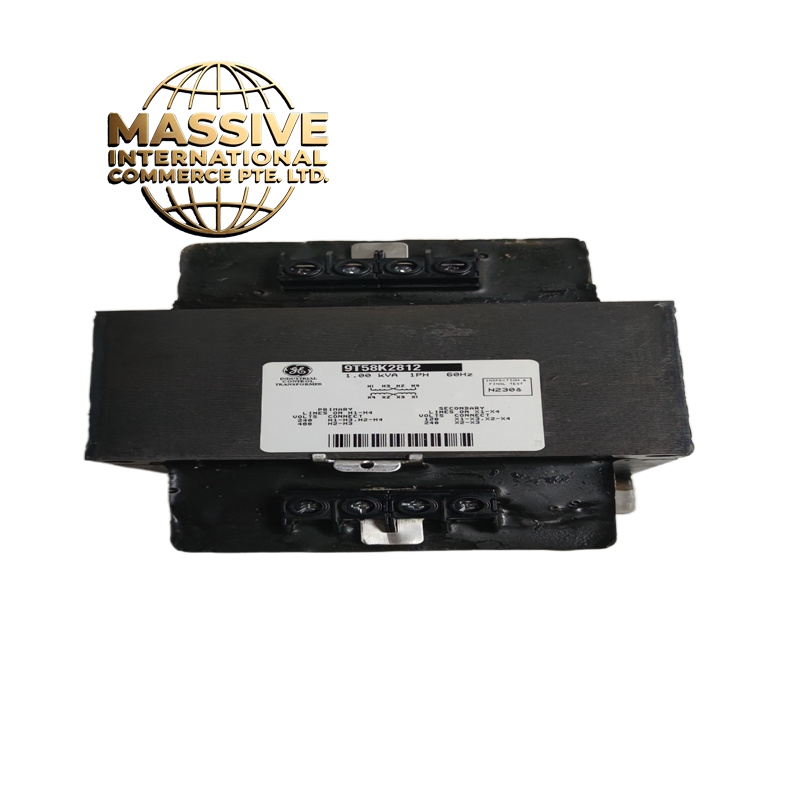

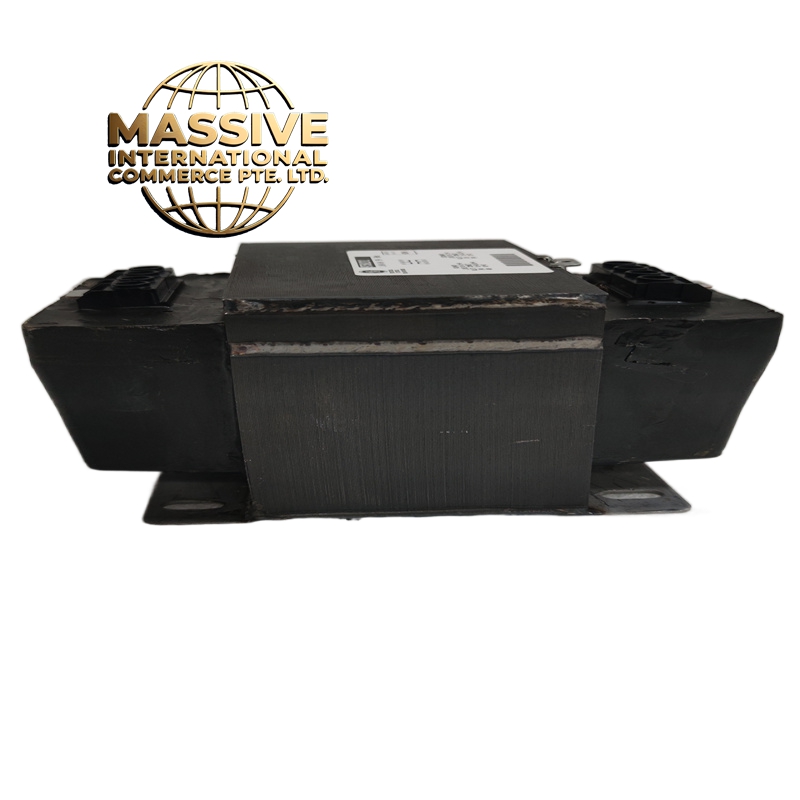

GE 9T58K2812 Technical Specifications:
- Product Category: Control Power / Machine Tool Transformer.
- System Frequency: 60 Hz operation.
- Thermal Rating: Designed to withstand a maximum winding temperature of 115°C.
- Voltage Configuration: Flexible design allowing for various primary and secondary voltage combinations.
- Safety Certification: Fully compliant with CUL and UL safety standards.
Functional Features:
- Voltage Transformation: Efficiently steps down or steps up AC voltage for control panels, relays, and contactors.
- Electrical Isolation: Provides galvanic isolation between the primary power source and the control circuit, reducing electrical noise and protecting equipment.
- High Surge Tolerance: Engineered as a high-surge transformer, making it an economical and robust alternative for demanding machine tool applications.
- Secure Connections: Features finger-safe terminals and press-plate connections to ensure maximum connection integrity and operator safety.
Application Scenarios:
- HVAC Systems: Powering control boards, fan motors, and compressors in heating, ventilation, and air conditioning units.
- Industrial Automation: Supplying stable power to PLCs, robotic controllers, and industrial signaling/alarm systems.
- Machine Tools: Operating CNC machines, automated assembly lines, and heavy-duty manufacturing equipment.
- Lighting Systems: Regulating power for specialized industrial LED and smart lighting control circuits.
Performance Parameters:
- Efficiency: High-efficiency magnetic core design minimizes energy loss and heat generation.
- Vibration Resistance: Welded core construction maintains stable electrical performance and quiet operation even in high-vibration environments.
- Reliability: Optimized for continuous duty cycles in harsh industrial settings.
Material Composition & Structural Characteristics:
- Windings: High-purity copper windings for superior conductivity and thermal management.
- Core: High-grade welded silicon steel core to reduce hysteresis and eddy current losses.
- Terminals: Heavy-duty 8-gauge brass screws and high-impact plastic terminal blocks for durable, corrosion-resistant connections.
- Enclosure: Ruggedized housing designed for both indoor and outdoor installation.
Working Principle: The transformer operates on the principle of electromagnetic induction. Alternating current flowing through the primary copper winding generates a fluctuating magnetic field within the welded steel core. This changing magnetic flux induces an alternating voltage in the secondary winding, proportional to the turns ratio between the primary and secondary coils, delivering the required control voltage to the load.
Installation Requirements:
- Mounting: Securely mount the transformer on a flat, stable surface using appropriate hardware to prevent mechanical resonance.
- Wiring: Use properly sized copper conductors and torque the 8-gauge brass terminal screws to the manufacturer’s specified settings to prevent arcing.
- Protection: Install appropriately rated primary fuses or circuit breakers to protect against short circuits and overloads.
- Clearance: Maintain adequate ventilation space around the unit to ensure proper heat dissipation.
Usage Precautions:
- Load Matching: Never exceed the rated VA (Volt-Ampere) capacity of the transformer to prevent overheating and insulation breakdown.
- Environmental Protection: Ensure the installation environment is protected from excessive moisture, corrosive gases, and conductive dust.
- Maintenance: Periodically inspect terminal connections for tightness and check for signs of thermal discoloration or abnormal noise.
- Safety: Always de-energize and lock out/tag out (LOTO) the primary power source before performing any wiring or maintenance tasks.
