Description

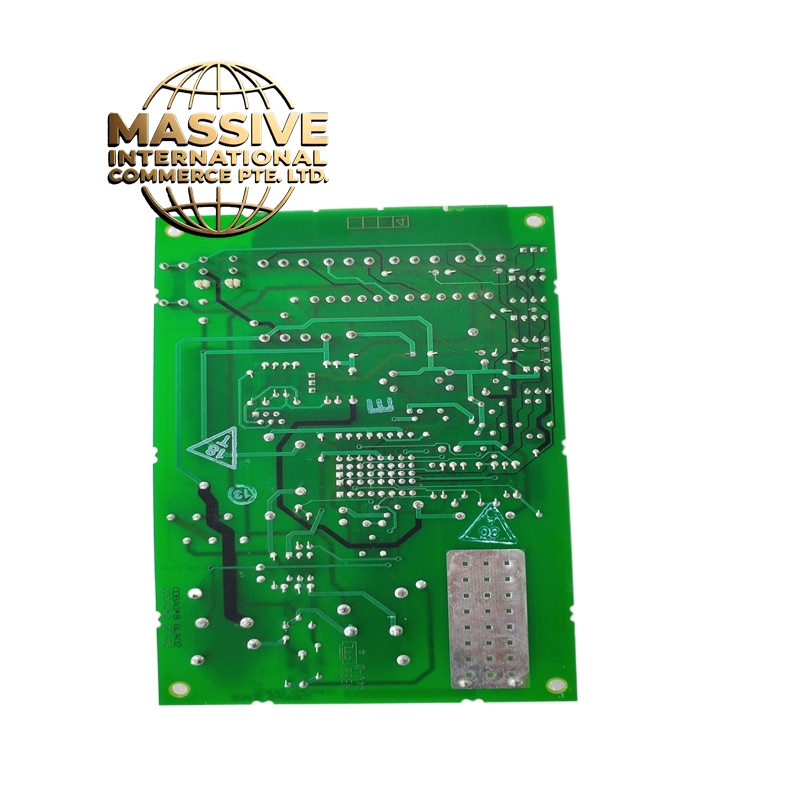

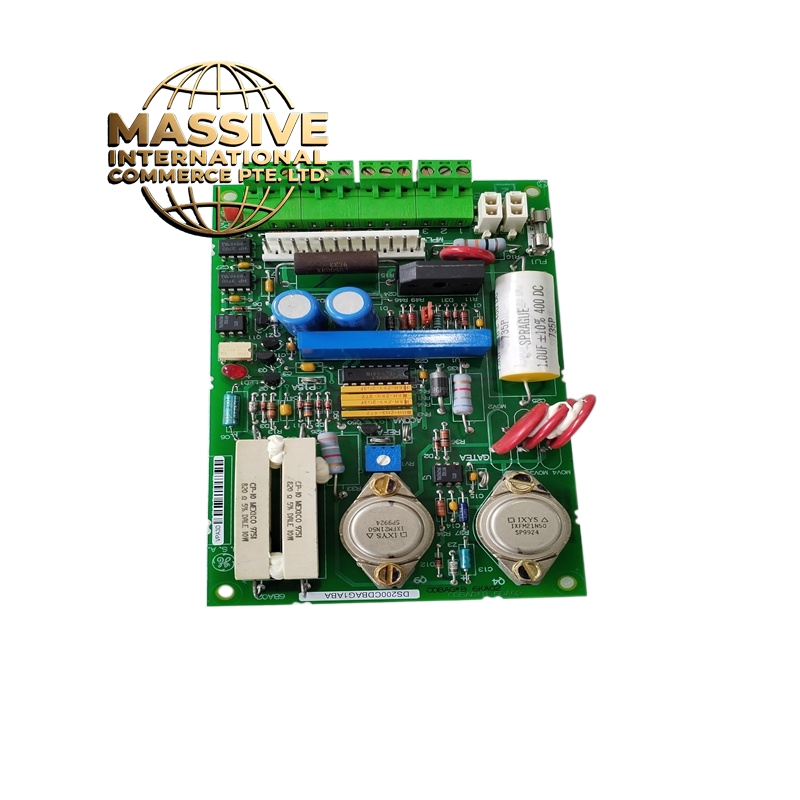

GE DS200CDBAG1ABA
Technical Specifications
-
Manufacturer: General Electric (GE)
-
Series: Mark V Speedtronic
-
Function: Contactor Driver Card
-
Connectors: Multiple pin connectors for signal distribution
-
Output Type: Contactor coil drive signals
-
Isolation: Optical isolation between control and power circuits
-
Operating Temperature: 30°C to +65°C (industrial grade)
-
Mounting: DIN rail or dedicated backplane slot installation
-
PCB Coating: Conformal coating for moisture, dust, and corrosion resistance
Functional Features
-
Provides precise drive signals for cabinet contactors
-
Ensures sequential switching of auxiliary equipment
-
Protects control circuits from power circuit feedback
-
High current handling capability for heavy-duty contactors
-
LED status indicators for fault diagnostics
Application Scenarios
-
Gas turbine auxiliary system control
-
Steam turbine lubrication and cooling system switching
-
Generator excitation system contactor control
-
Power plant balance-of-plant equipment switching
Structural Characteristics
-
Compact rectangular PCB design
-
Heavy-duty terminal blocks for power connections
-
Low-profile connectors for control signals
-
Ruggedized housing for industrial environments
Installation Requirements
-
Must be installed in Mark V control cabinet
-
Requires proper grounding to cabinet frame
-
Verify contactor coil voltage compatibility before installation
-
Ensure adequate ventilation for heat dissipation
Operational Precautions
-
De-energize all power sources before installation or maintenance
-
Verify connector polarity before applying power
-
Check contactor coil resistance to prevent overload
-
Periodic inspection of terminal tightness recommended
