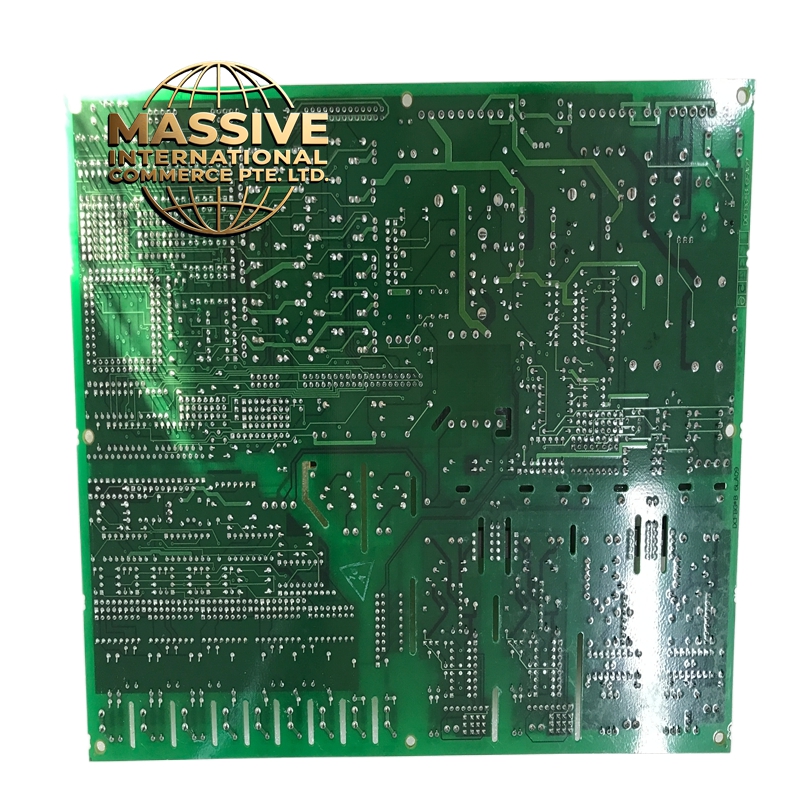

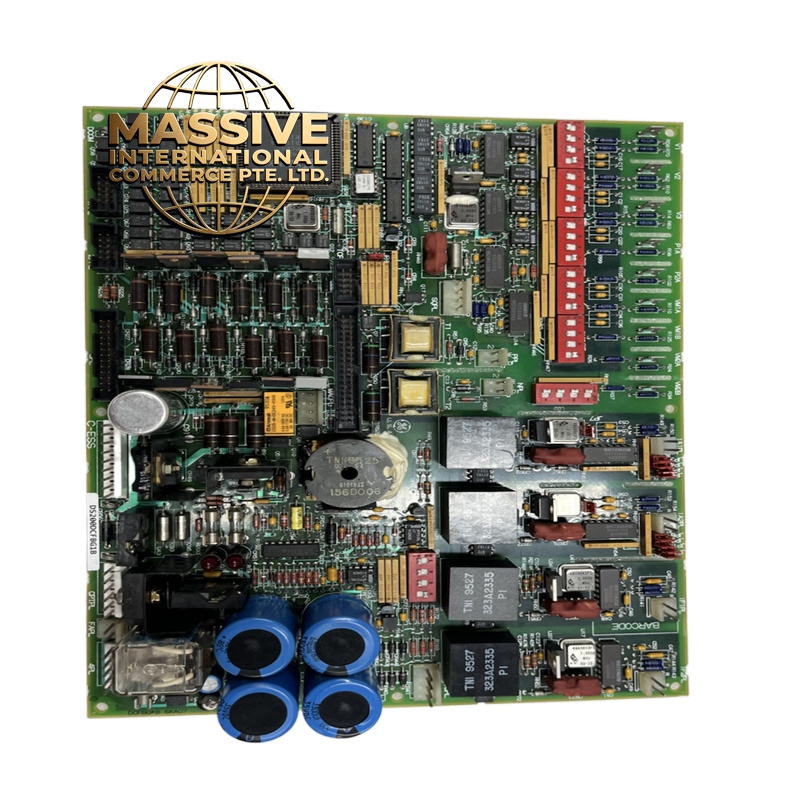

GE DS200DCFBG1B

Description

GE DS200DCFBG1B

Technical Specifications

• Manufacturer: General Electric (GE)

• Series: Mark V Speedtronic

• Function: DC Power and Feedback Board

• Input Voltage: 38 VAC and 115 (24 VDC alternative)

• Output Voltage: +24 VDC control power, 115 VAC fan power

• Rated Output Power: 120W

• Operating Temperature: 40°C to +85°C (extended industrial range)

• Dimensions: 85 mm × 45 mm × 23 mm (compact variant) / 200 mm × 100 mm × 50 mm (standard variant)

• Weight: Approximately 1.2 kg

• Protection Rating: IP67 (sealed variant)

• Mounting: DIN rail installation

• Communication Interface: Ethernet (on specific variants)

Functional Features

• Converts input AC or DC power to required DC voltages for stable system operation
• Provides multiple protection functions including overvoltage and overcurrent protection
• High-quality components with rigorous testing for long-term stability
• Modular design facilitates easy repair and replacement
• Excellent compatibility with other Mark V series devices
• Power feedback capability for system monitoring and diagnostics

Application Scenarios

• Power Plants: Controls power generation equipment including steam turbines and gas turbines

• Substations: Controls transformers, switches, and protection systems

• Industrial Process Control: Regulates various industrial processes requiring precise power management

• Steel Mills and Cement Plants: Powers induction motors and drives in conveyor systems and heavy machinery

• Mining Equipment: Ensures stable power delivery to variable-speed drives for crushers and conveyors

• Shipboard Systems: Manages power distribution for marine propulsion and auxiliary systems

Structural Characteristics

• Compact modular design for space-constrained installations
• High-reliability power conversion circuitry
• Ruggedized construction for harsh industrial environments
• Clear labeling for input/output connections
• LED indicators for power status and fault conditions

Working Principle The board receives primary power from the facility electrical system (38 VAC or 115 ), converts it through internal rectification and regulation circuits to produce stable +24 VDC for control electronics, and simultaneously passes 115 VAC directly to cabinet cooling fans. Feedback circuits monitor output voltage and current, providing status signals to the main control processor.

Installation Requirements

• Install in Mark V control cabinet power distribution section
• Ensure input voltage matches facility supply (verify jumper settings)
• Connect cooling fan loads to designated 115 VAC outputs
• Provide adequate clearance for heat dissipation
• Ground chassis securely to cabinet frame

Operational Precautions

• Verify all power sources are de-energized before installation
• Check input voltage selector settings before applying power
• Monitor output voltages during initial startup
• Do not exceed rated output power (120W)
• Ensure cooling fans are operational to prevent overheating
