Description

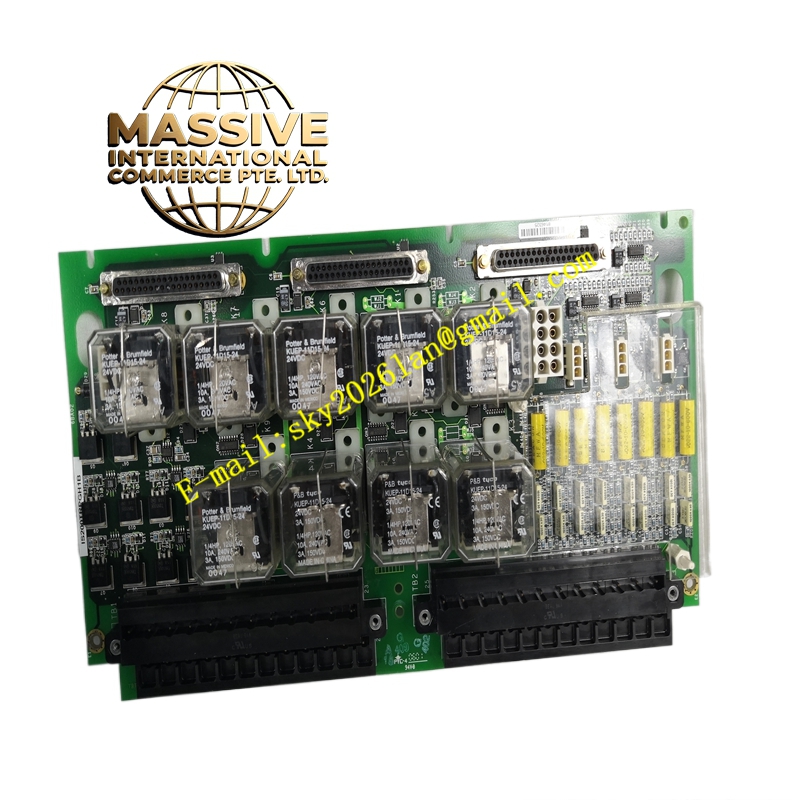

GE DS200SDCIG1AFB
Technical Specifications
- Part Number: DS200SDCIG1AFB
- Manufacturer: General Electric
- Series: Mark V / DC2000 Drives
- Product Type: DC Power Supply and Instrumentation Board
- Instruction Manual: GEI-100173
- PCB Coating: Normal Coating
- Functional Revision 1: A
- Functional Revision 2: F
- Artwork Revision: B
- Operating Temperature: -30°C to +65°C
- Input Voltage: Up to 600 VAC
- Field Output Current: 10A internal NRX; 15A fused output
- Field Control Type: Non-reversing, non-plugging (NRX)
- Mounting: Rack-mounted in Mark V cabinet
Key Features
- DC power supply and instrumentation functionality for Mark V systems
- Interface to DC2000 drives
- Non-reversing, non-plugging (NRX) motor control
- Multiple integrated circuits, power supplies, and motor field circuits
- Field supply circuit capable of handling fields up to 10A
- Driver circuits for armature SCR gating
- Circuits for monitoring motor signals including armature current and voltage, field current, and AC line currents and voltages
- Snubbers and reactor for stability and voltage spike protection
- 3-phase MOV (Metal Oxide Varistor) protection depending on drive frame size
- Fuses FU5 and FU6 protect field outputs and MOV outputs
- Neon lights LT5 and LT6 indicate blown fuses FU5 or FU6
- Multiple power supply circuits: +5V DC (4A), +15V DC (0.4A), -24V DC, 115V AC (0.4A)
- Fuse protection for power supply outputs
- LEDs for blown fuse indication
- Customizable jumpers and switches for configuration
Application Scenarios Gas turbine control systems, steam turbine management, DC2000 drive applications, industrial motor control, power generation facility automation, single-direction motor operation applications
Performance Parameters
- Input Voltage: Up to 600 VAC
- Field Output: 10A internal NRX; 15A fused
- Power Supplies: +5V DC 4A, +15V DC 0.4A, -24V DC, 115V AC 0.4A
- Operating Temperature: -30°C to +65°C
- Fuses: FU1 (115V AC power), FU2/FU3 (signal-level power), FU5/FU6 (field/MOV protection)
