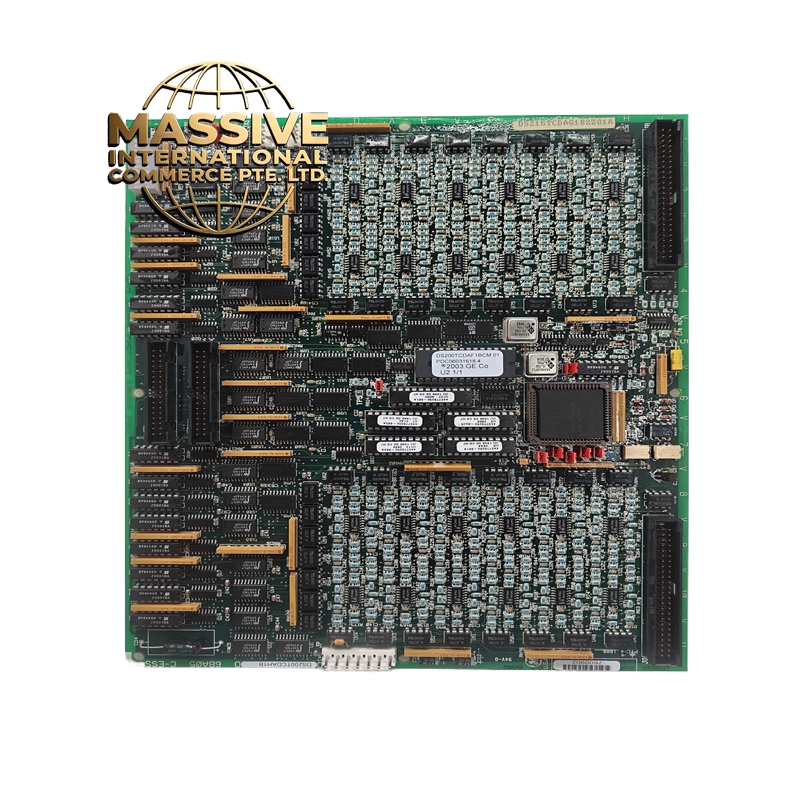

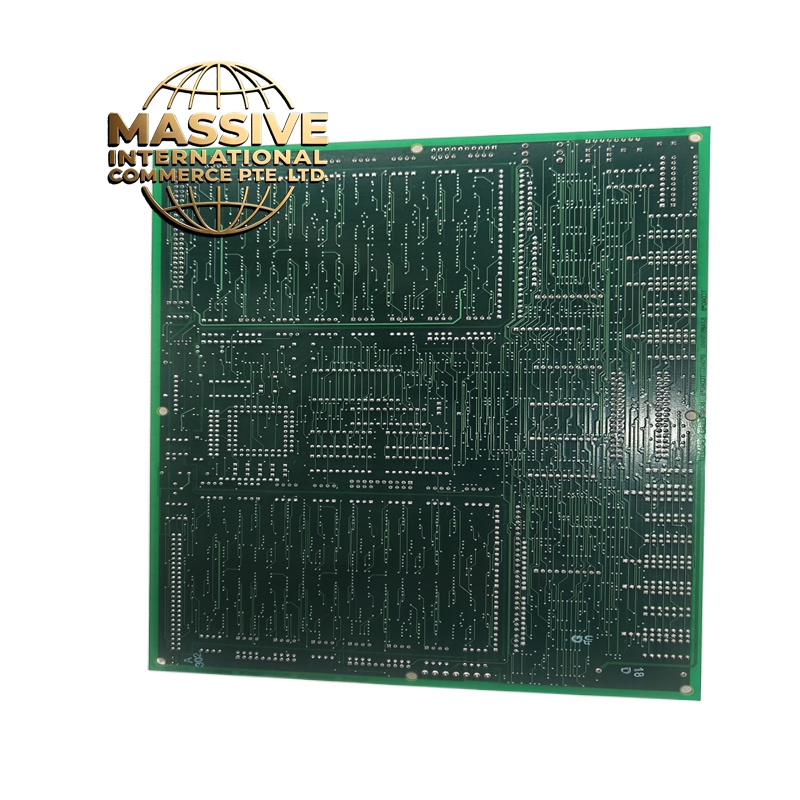

Product Overview: The GE DS200TCDAH1B is a specialized I/O interface board for GE turbine control systems. It provides the physical connection point for field sensors and actuators, conditioning signals and providing electrical isolation between the harsh field environment and the sensitive control processor.

Request Quote
Category: SKU: GE DS200TCDAH1B

Description

GE DS200TCDAH1B Technical Specifications:

  • Board Type: Turbine Control I/O Interface.
  • Signal Types: Supports analog inputs (RTD, TC, 4-20mA), discrete inputs, and relay outputs.
  • Isolation: Galvanic isolation between field circuits and backplane.
  • Power: Local power regulation for field devices.

Functional Features:

  • Signal Conditioning: Filters noise and scales raw sensor signals for accurate processing.
  • Protection: Overvoltage and overcurrent protection for field wiring.
  • Status Indication: LEDs for channel status, power, and fault conditions.

Application Scenarios:

  • Interfacing temperature, pressure, and vibration sensors to the turbine controller.
  • Driving solenoid valves, alarms, and indicator lights.
  • Providing safe electrical isolation in high-voltage turbine environments.

Performance Parameters:

  • Accuracy: High-precision analog measurement for critical turbine parameters.
  • Response Time: Fast digital I/O switching for emergency trip circuits.

Material Composition & Structural Characteristics:

  • Terminals: Heavy-duty screw terminals or pluggable connectors for field wiring.
  • PCB: Multi-layer board with ground planes for EMI shielding.
  • Fusing: Resettable fuses or solid-state protection for output channels.

Working Principle: Field signals are routed through protection circuits and signal conditioners. Analog signals are digitized and passed to the backplane, while discrete signals are buffered. Output commands from the controller are isolated and amplified to drive field devices safely.

Installation Requirements:

  • Wiring: Use shielded twisted-pair cables for analog signals and properly ground the shields.
  • Termination: Ensure all field wires are securely terminated and torqued to specification.
  • Labeling: Clearly label all field connections for future troubleshooting.

Usage Precautions:

  • Open Circuits: Never disconnect field wiring while the system is energized without following proper safety procedures.
  • Short Circuits: Avoid shorting output channels; this can damage the board’s protection circuitry.
  • Grounding: Implement a single-point ground for the I/O cabinet to prevent ground loops.
