Description

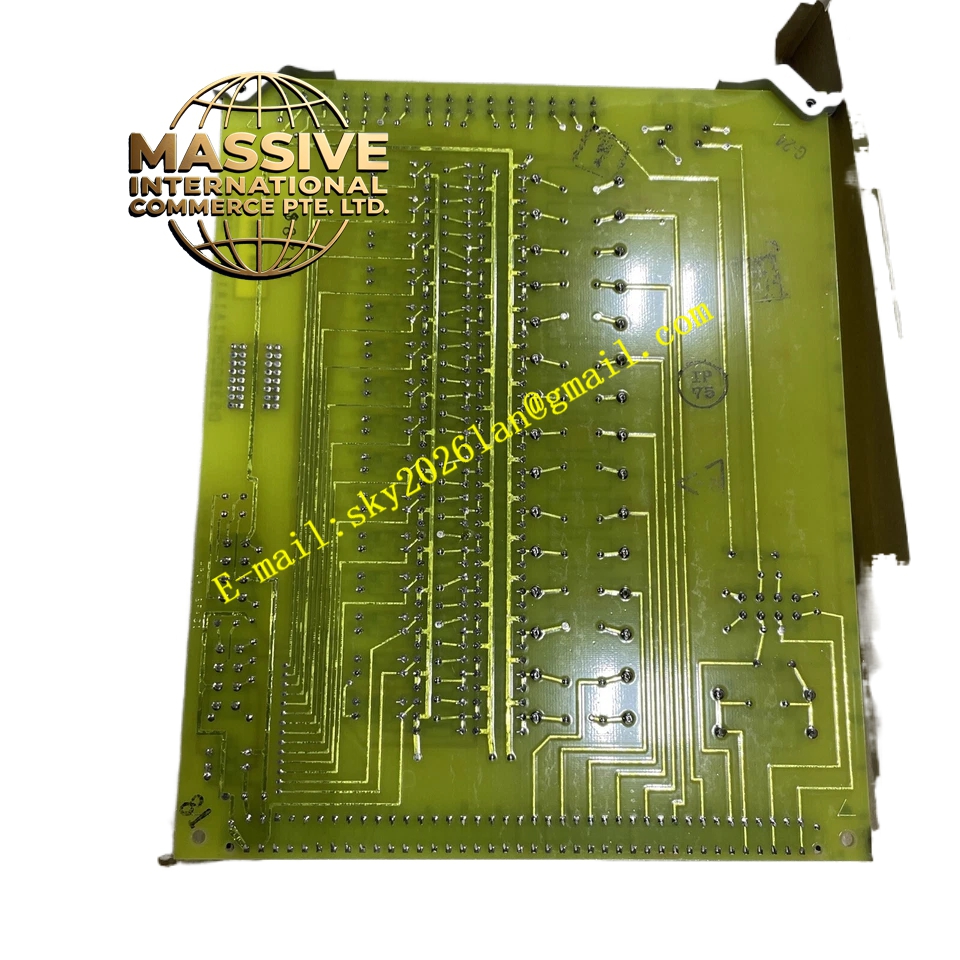

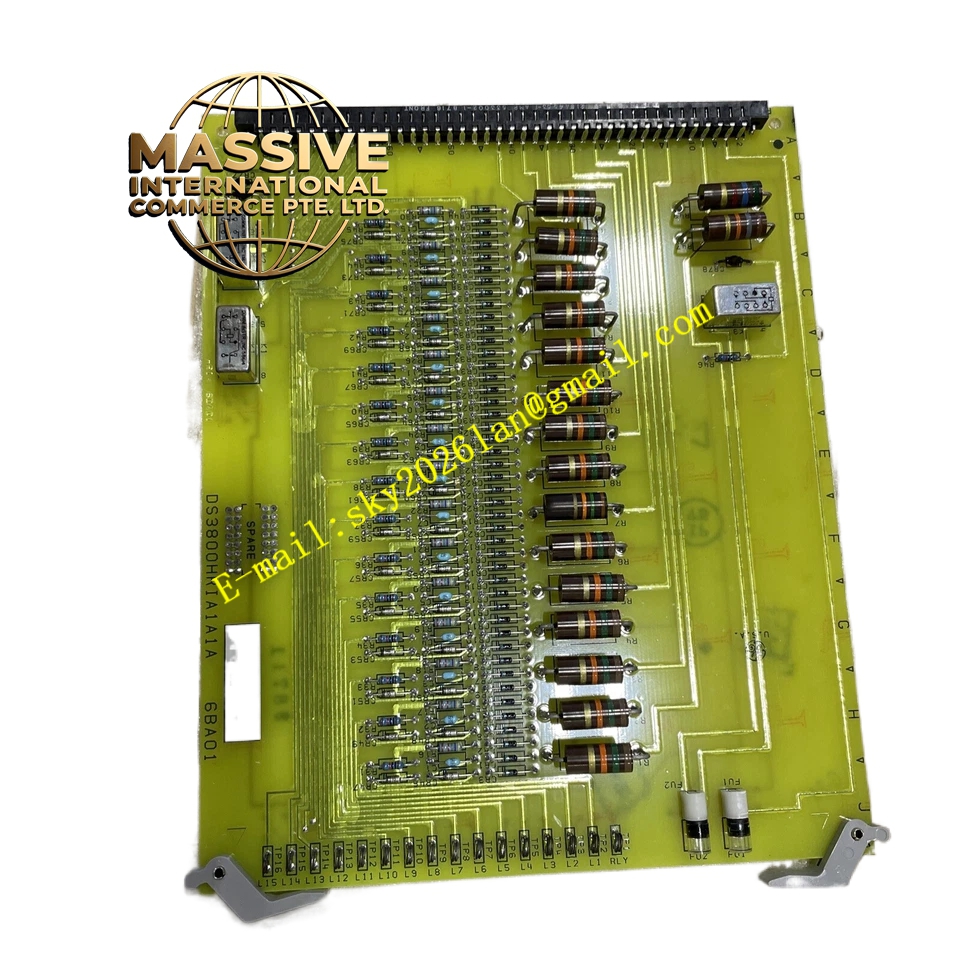

GE DS3800HRIA1A1A
Technical Specifications
- Part Number: DS3800HRIA1A1A
- Series: Mark IV / Speedtronic
- I/O Type: Digital Inputs and Outputs
- Voltage Rating: Typically 24VDC or 125VDC (system dependent)
Functional Features
- Discrete Monitoring: Reads the status of limit switches, pressure switches, and relays.
- Control Outputs: Drives indicator lights, alarms, and intermediate relays.
- Optical Isolation: Protects internal logic from field voltage transients.
Application Scenarios
Gas and steam turbine control systems, emergency shutdown systems, and auxiliary equipment monitoring.
Performance Parameters
- Response Time: Millisecond-level digital switching.
- Channel Count: Multiple discrete channels per board.
Material Composition
Industrial-grade PCB with optical isolators, solid-state relays, and discrete logic ICs.
Structural Characteristics
Standard Eurocard form factor with backplane connectors and front-panel diagnostic LEDs.
Working Principle
Field digital signals are routed through optical isolators to the backplane, translating physical switch states into logic-level signals readable by the main processor.
Installation Requirements
- Insert into an available slot in the Mark IV chassis.
- Verify backplane wiring matches the I/O point map.
- Secure with retaining screws.
Usage Precautions
- Never connect AC voltage to DC-rated inputs.
- Replace only with identical part numbers to maintain system integrity.
- Observe ESD precautions during handling.
