Description

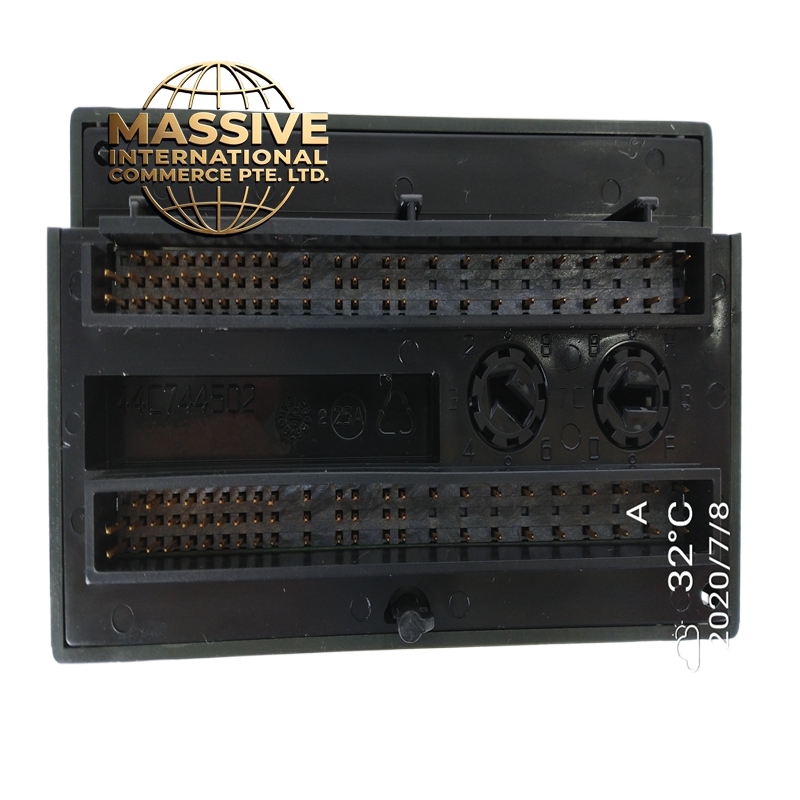

GE IC200ALG630 Technical Specifications:
- Number of Channels: 8 independent channels
- Input Types: Thermocouple (J, K, T, E, N, R, S, B) and RTD (2/3/4-wire)
- Resolution: 16-bit A/D conversion
- Accuracy: ±0.1% of reading + 1 count (RTD), ±1.5°C (thermocouple, typical)
- Cold Junction Compensation: Built-in, automatic, ±0.5°C accuracy
- Isolation: 500V DC channel-to-channel, channel-to-logic
- Sampling Rate: 10ms per channel (all channels scanned)
- Power Consumption: 500mA from 5V bus
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
Functional Features:
- Supports 8 different thermocouple types with auto-detection
- 2/3/4-wire support with lead-wire resistance compensation
- 16-bit resolution for high-precision temperature readings
- Per-channel diagnostic LEDs indicate open circuit, short circuit, and out-of-range conditions
- Software-configurable filtering: 50Hz/60Hz notch filter and user-defined low-pass filter
- Group diagnostics allow quick identification of faulty channels
- Hot-swappable with no system disruption
Application Scenarios:
- Power Generation: Boiler temperature
- Chemical Processing: Reactor temperature control, distillation column monitoring
- Food & Beverage: Pasteurization temperature tracking, fermentation control
- Pharmaceutical: Cleanroom temperature validation, lyophilization monitoring
- Oil & Gas: Pipeline temperature surveillance, wellhead monitoring
Performance Parameters:
| Parameter | Value |
|---|---|
| Channels | 8 |
| Thermocouple Types | J, K, T, E, N, R, S, B |
| RTD Types | Pt100, Pt1000, Cu50, Cu100 |
| Resolution | 16-bit |
| Accuracy (RTD) | ±0.1% + 1 count |
| Accuracy (TC) | ±1.5°C |
| Update Rate | 10ms (all channels) |
| Isolation | 500V DC |
| Current Draw | 500mA |
Material Composition:
- PCB: High-Tg FR-4 with gold-finger edge connector
- Terminals: Phoenix-style spring terminals, nickel-plated
- Housing: Flame-retardant polycarbonate blend, IP20 rated
- Isolation Barriers: Opto-isolators and isolation amplifiers per channel
Structural Features:
- Single-width IC200 form factor
- 8 individual terminal blocks, color-coded by channel group
- Status LEDs: Power (green), Channel 1–4 (yellow), Channel 5–8 (yellow), Fault (red)
- DIN rail or chassis mount
Working Principle: Each channel contains a dedicated signal conditioning circuit. For thermocouple inputs, the tiny millivolt signal is amplified by a low-drift instrumentation amplifier, cold-junction compensated using an on-board precision temperature sensor, and then digitized by a 16-bit sigma-delta ADC. For RTD inputs, a constant current source excites the sensor, and the voltage drop across the RTD is measured to calculate resistance and thus temperature. Channel isolation is maintained via opto-couplers and isolated power supplies per channel group. Installation Requirements:
- Install in IC200 chassis with adequate slot spacing for heat dissipation
- Use dedicated shielded cable for each thermocouple or RTD sensor
- For thermocouples: use extension-grade or thermocouple-grade wire; never use copper wire
- For RTDs: use 3-wire configuration for best accuracy over long distances
- Ground shields at the PLC end only
- Keep sensor wires away from VFD output cables and motor leads
Usage Notes:
- Always configure the correct thermocouple type in software — wrong type = completely wrong temperature reading
- For RTDs, use the matching wire configuration (2-wire for short runs, 3-wire for runs over 10m)
- Enable the built-in 50/60Hz filter if operating near large motors or welders
- Perform a zero-point check (ice bath for thermocouples, known resistance for RTDs) during commissioning
- Replace fuse on each channel group if a channel shows persistent fault
