Description

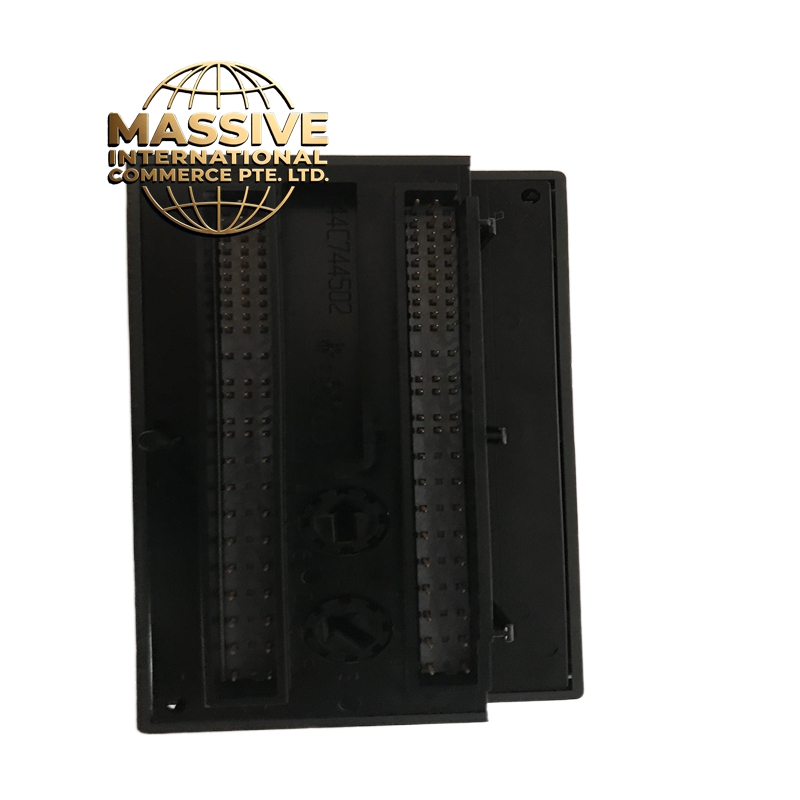

GE IC200MDL240B Technical Specifications:
- Number of Channels: 16 (8 channels per group, 2 groups)
- Input Voltage: 24V DC nominal (18V–30V DC acceptable range)
- Input Type: Sink (NPN) — common return shared per group of 8
- Isolation: 500V DC channel-to-logic, 500V DC group-to-group
- Response Time: 1ms (on-delay), 1ms (off-delay)
- Filter Time: 1.6ms (software configurable)
- Current per Channel: 3mA (typical)
- Power Consumption: 300mA from 5V bus
- Operating Temperature: 0°C to 60°C
Functional Features:
- 16 independent inputs with per-channel LED indicators
- Two groups of 8 channels with separate common return terminals
- Input filtering to reject contact bounce and electrical noise
- Diagnostic LEDs: Power (green), Group 1 (yellow), Group 2 (yellow), Fault (red)
- Conformal-coated PCB for humidity resistance
Application Scenarios:
- Machine Control: Emergency stop buttons, door interlocks, safety gates
- Conveyor Systems: Photoelectric sensors, proximity switches, encoder zero pulses
- Packaging Machines: Product presence detection, jog buttons, mode selectors
- Material Handling: Limit switches on cranes, hoists, and elevators
Performance Parameters:
| Parameter | Value |
|---|---|
| Channels | 16 |
| Input Voltage | 24V DC (18–30V range) |
| Input Type | Sink (NPN) |
| Isolation | 500V DC |
| Response Time | 1ms |
| Filter | 1.6ms (configurable) |
| Current Draw | 300mA |
| Groups | 2 groups of 8 |
Material Composition:
- PCB: FR-4 with conformal coating
- Terminals: Screw-type, zinc-plated steel
- Optocouplers: Per-channel, industrial-grade
- Housing: Flame-retardant ABS
Working Principle: When a 24V DC signal is applied to an input terminal, current flows through the input LED of an optocoupler. The optocoupler’s phototransistor switches on the logic side, sending a “1” to the CPU. When the signal is removed, the optocoupler turns off, sending a “0”. The shared common return per group of 8 allows wiring flexibility — all 8 inputs in a group can share one negative wire. Installation Requirements:
- Wire all field devices to the module’s terminal block
- Connect the common return (COM) for each group of 8 to the negative side of the 24V DC supply
- Use shielded cable for long runs; ground shield at PLC end
- Do not mix AC and DC inputs on the same module
Usage Notes:
- This is a SINK (NPN) module — your field devices must be NPN/PNP-sinking type
- If you have PNP (sourcing) sensors, use IC200MDL240 (sourcing version) instead
- The 1.6ms filter eliminates contact bounce but adds slight delay — disable for high-speed counting applications
- Maximum cable length: 100m for 24V DC inputs with 3mA current
