Description

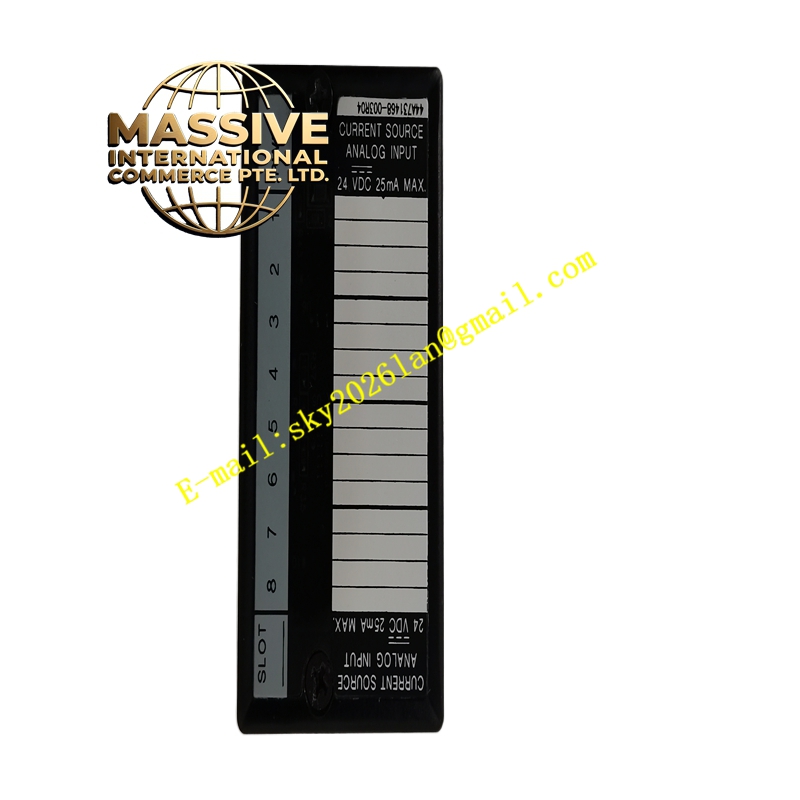

GE IC670ALG230
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Line | Field Control Series |
| Module Type | Analog Current Input Module |
| Number of Channels | 8 Single-Ended Inputs |
| Input Type | Current Source |
| Input Range | 0-20mA or 4-20mA configurable |
| Digital Resolution | 12-bit |
| Analog Resolution | 5.0μA |
| Typical Conversion Time | 60 microseconds per channel |
| Input Impedance | 2.87 kΩ |
Functional Features:
- Converts analog current signals (4-20mA) into digital data
- Features modular design for convenient system expansion
- Provides high accuracy measurement capabilities
- Supports field signal transmitter connections
- Compatible with Variable Frequency Drives (VFDs) outputs
- Includes first-order RC input filter (cutoff -160Hz)
Application Scenarios:
- Manufacturing process control systems
- Petrochemical industry monitoring applications
- Water treatment facility instrumentation
- Energy management systems
- Robotic control feedback loops
- Data acquisition equipment integration
- Signal separator and panel instrument interfaces
Performance Parameters:
| Parameter | Value |
|---|---|
| Operating Voltage | 24VDC nominal |
| Rated Input Voltage | 10-30VDC |
| Power Consumption | Maximum 4.8W |
| Current Consumption | 51mA max from BIU power supply |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Isolation Voltage | 2500VDC |
| Dimensions | 120mm x 60mm x 22mm |
| Weight | Approximately 200g |
Construction Characteristics:
- Rugged housing for harsh industrial environments
- Modular plug-in design for easy replacement
- Terminal block interface for field wiring
- Grouped input common configuration
- Auxiliary terminal block for extended connections
Installation Requirements:
- Install alongside Bus Interface Unit (BIU) module in rack
- Provide auxiliary terminals using terminal block IC670CHS002
- Ensure proper 24VDC power supply connection
- Route current source signals to designated input terminals
- Maintain electrical isolation as specified
Usage Precautions:
- Verify current signal polarity before connection
- Do not exceed input current ratings
- Protect from excessive vibration during operation
- Ensure compatible BIU is present in system
- Allow cooling time after initial power-up
