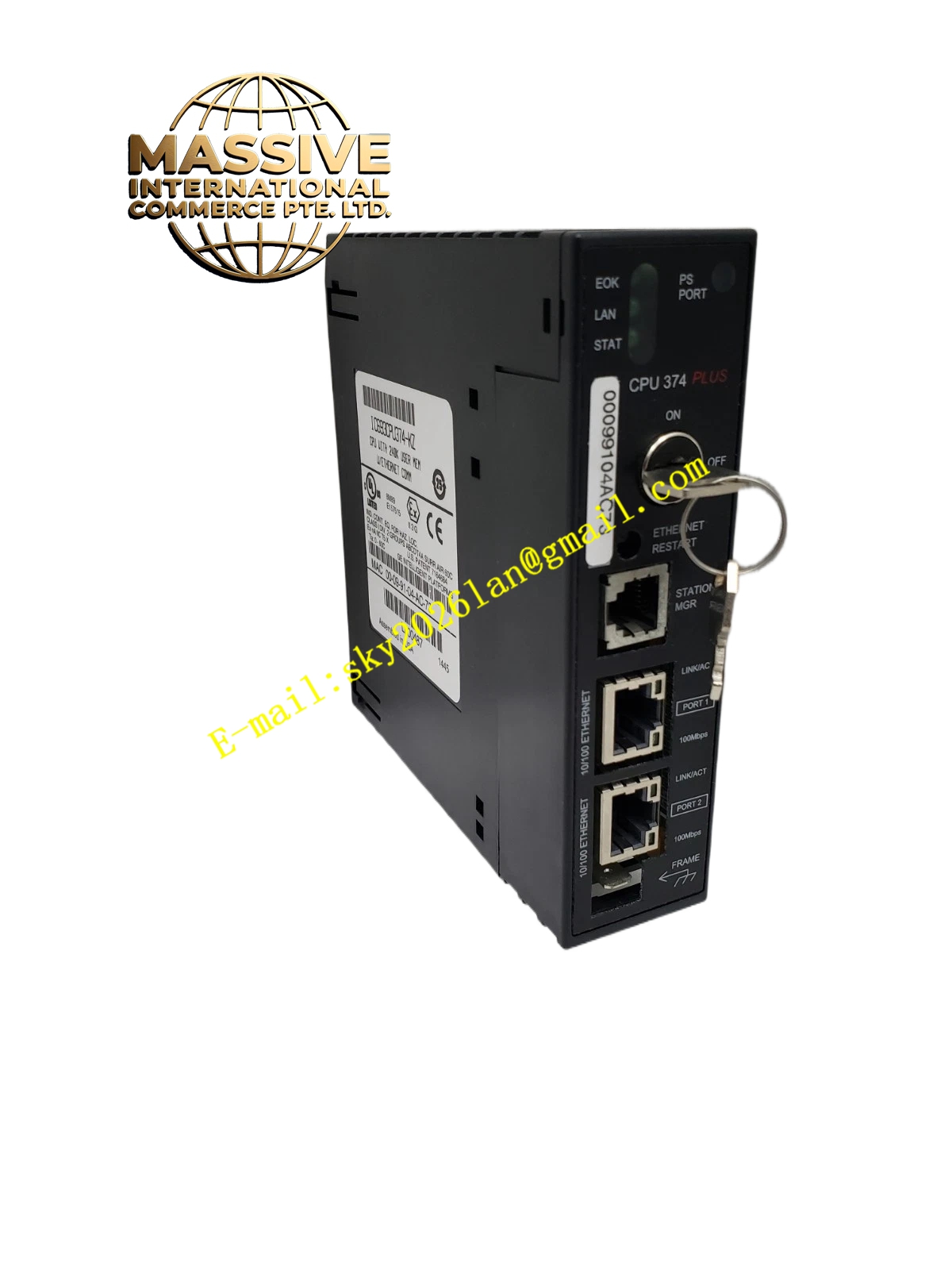

GE IC693CPU374-KZ
Technical Specifications:
- Brand: General Electric (GE) Fanuc
- Model: IC693CPU374-KZ
- Product Type: Single Slot CPU Module
- Processor: AMD SC520 (586-class), 133 MHz
- User Memory: 240 KB (RAM with battery backup)
Functional Features:
- High-Speed Processing: Executes complex logic and hardware floating-point math with a typical scan rate of 0.15ms per 1K Boolean contacts.
- Dual Ethernet Ports: Features two 10/100 Mbps auto-sensing RJ45 ports supporting SRTP, EGD, and Modbus TCP/IP protocols.
- Extensive I/O Capacity: Supports up to 2048 discrete I/O points and 32,640 analog I/O words across local and distributed racks.
Application Scenarios:
Widely deployed in automotive manufacturing, water treatment facilities, oil and gas pipelines, and mid-sized industrial automation processes.
Performance Parameters:
- Scan Rate: 0.15ms / 1K Boolean logic.
- Power Consumption: 5V DC at 1.4A (7.4W).
Material Composition:
Constructed with industrial-grade printed circuit boards, conformal coating for environmental protection, and high-reliability integrated circuits.
Structural Characteristics:
Occupies a single slot in the Series 90-30 rack. Features dual RJ45 Ethernet ports, status LEDs, and a dedicated battery port for RAM retention.
Working Principle:
Continuously scans field inputs via the backplane, executes the user’s ladder or structured text logic, updates internal memory registers, and drives physical outputs or network communications.
Installation Requirements:
Insert into an empty slot in a powered-down Series 90-30 rack. Install a backup battery (e.g., IC693ACC302) to prevent program loss during power outages.
Usage Precautions:
This model is currently obsolete; ensure compatibility before deployment. Always observe ESD precautions and never remove the module while the system is energized.
