Description

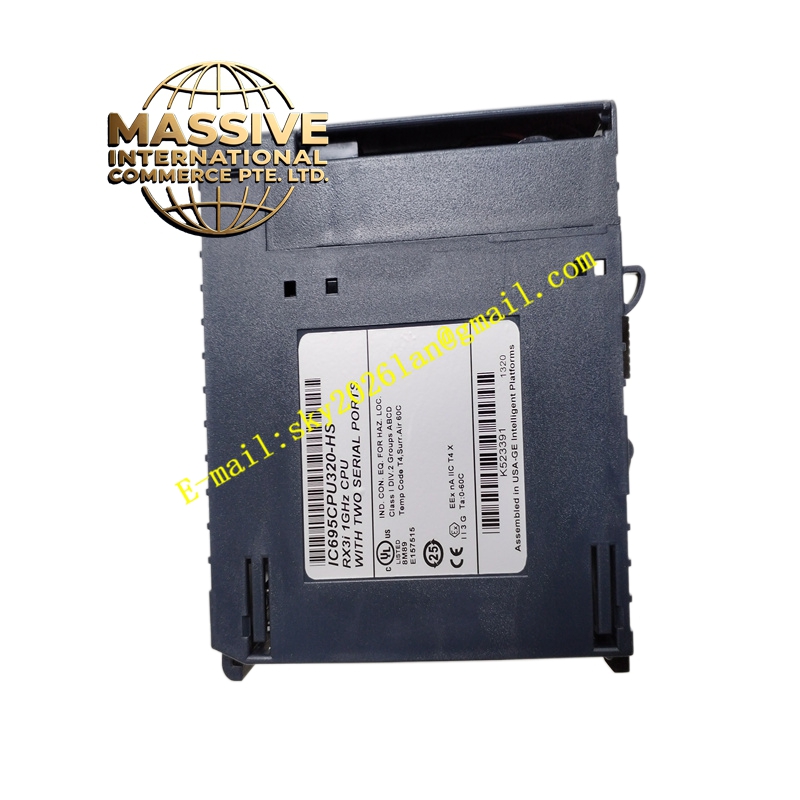

GE IC695CPU320 Technical Specifications:
- Processor Speed: High-frequency Intel Celeron/Pentium III core operating at 300 MHz or higher.
- Memory Architecture: 10 MB Battery-Backed RAM and 10 MB Non-Volatile Flash Memory.
- Serial Interfaces: Dual embedded ports supporting RS-232 and RS-485.
- Protocol Support: Modbus RTU Slave, SNP, Serial I/O, with expansion support for Modbus TCP/IP, SRTP, and EGD.
- Backplane Bus: Full support for 216 Mbps high-speed PCI backplane.
Functional Features:
- Motion Control Integration: Native support for high-speed counters, positioning control, and synchronized multi-axis motion via dedicated intelligent modules.
- Advanced Math Capabilities: Hardware-accelerated floating-point processing for complex PID loops, matrix operations, and custom algorithms.
- Extensive Diagnostics: Granular fault tracking, including detailed error logging, module-level diagnostics, and communication health monitoring.
- Hot Standby/Redundancy Support: Engineered to support high-availability architectures with millisecond-level failover times.
Application Scenarios:
- High-speed printing and converting machinery.
- Complex robotics and multi-axis CNC machining centers.
- Oil and gas pipeline compression and pumping stations.
- Large-scale power plant boiler and turbine control systems.
Performance Parameters:
- Instruction Set: Comprehensive IEC 61131-3 instruction set with optimized execution for C-language routines.
- I/O Update Rate: Ultra-fast discrete and analog I/O scanning for tight closed-loop control.
- Data Logging Capacity: Capable of logging tens of thousands of process events and trends directly to Flash memory.
- Task Management: Multi-tasking operating system allowing for prioritized execution of critical safety and communication tasks.
Material Composition & Structural Characteristics:
- Industrial Grade Components: Utilizes high-temperature, vibration-rated electronic components.
- Mechanical Ruggedness: Reinforced PCB mounting and backplane connector retention mechanisms.

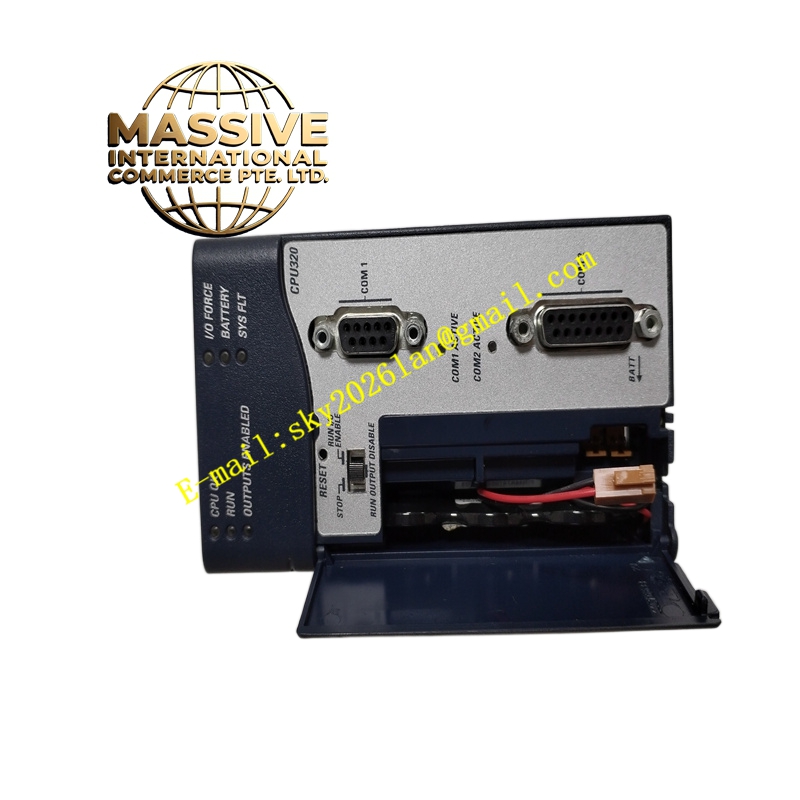

- Status Indicators: 8 LED array providing comprehensive real-time system health visibility.
- Form Factor: Standard RX3i single-slot width, maximizing I/O density in the control panel.
Working Principle: The IC695CPU320 leverages its high-speed processor and PCI backplane to execute thousands of instructions per millisecond. It manages multiple concurrent tasks, prioritizing critical motion control and safety logic over background communication. Data is continuously exchanged with intelligent I/O modules, while the embedded serial ports and Ethernet expansions handle external device polling, HMI updates, and enterprise data reporting simultaneously.
Installation Requirements:
- Environmental Compliance: Ensure the control panel maintains the specified 0°C to 60°C operating temperature range; use enclosure cooling if necessary.
- Power Supply Sizing: Select a high-capacity power supply (e.g., IC695PSA040 or higher) to accommodate the CPU’s peak current draw during startup and heavy processing.
- Expansion Modules: Install high-speed Ethernet or motion control modules in adjacent slots to maximize PCI bus bandwidth utilization.
- Grounding: Implement a strict, low-impedance grounding scheme to protect the high-speed digital circuits from electrical noise.
Usage Precautions:
- Thermal Monitoring: Utilize the CPU’s internal temperature monitoring and OVERTEMP LED to prevent thermal throttling or hardware damage.
- Memory Management: Monitor Flash memory usage when utilizing extensive data logging; implement circular buffering to prevent memory overflow.
- Communication Load: Avoid overloading the embedded serial ports; utilize Ethernet expansion modules for high-bandwidth SCADA or HMI traffic.
- Safe Maintenance: Always transition the CPU to STOP mode and verify the OUTPUTS ENABLED LED is off before performing any hardware maintenance or wiring changes.
