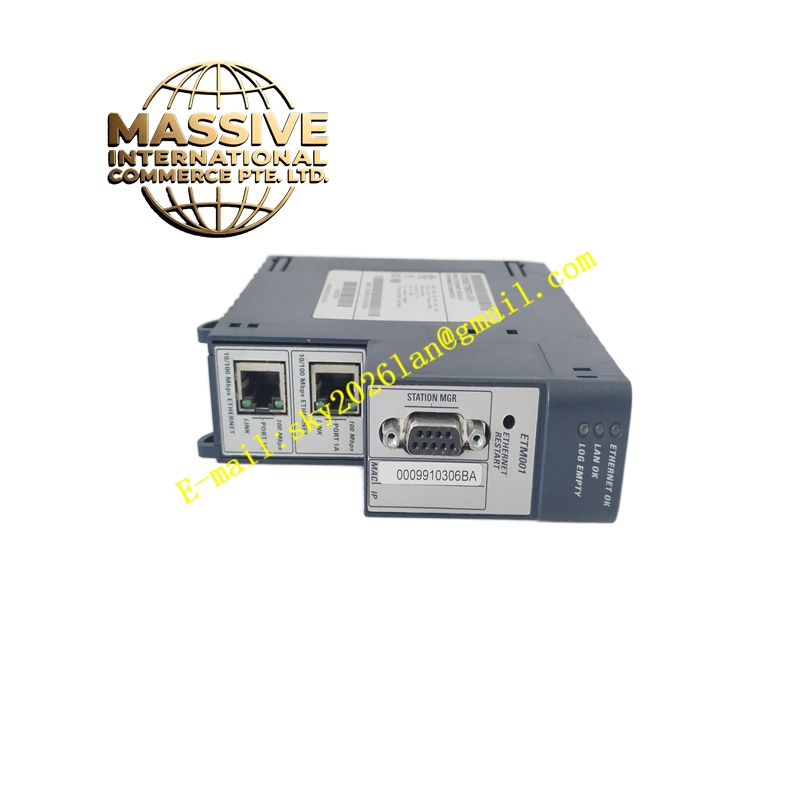

GE IC695ETM001
- Technical Specifications:
- Ports: 2 × 10/100 Mbps RJ-45 (10BaseT/100BaseTX)
- Additional Port: 1 × RS-232 serial (1200–115,200 bps)
- Protocols: SRTP, Modbus TCP, EGD; supports SNTP time synchronization
- Processor: 200 MHz Ethernet processor
- Hot-Swap: Supported (with RX3i universal backplane and firmware 2.51+)
- Compatible Backplanes: IC695CHS007, IC695CHS012, IC695CHS016
- Functional Features:
- Embedded Ethernet switch for daisy-chain topologies
- Redundant IP addressing supported
- Station Manager accessible via Ethernet or RS-232 for configuration and diagnostics
- LED indicators (OK, Status, LAN OK, Log Empty, per-port activity/speed)
- Application Scenarios: PLC networking, HMI/SCADA connectivity, controller-to-controller data exchange, time synchronization via SNTP.
- Performance Parameters:
- Single MAC/IP address per module; supports up to 32 TCP connections
- Supports EGD periodic data exchange and SRTP channels
- Material and Structural Characteristics:
- Industrial-grade components; front RJ-45 ports and RS-232 connector
- Working Principle: Handles Ethernet communications independently of the CPU to reduce load; provides data exchange via EGD and protocol services (SRTP, Modbus TCP).
- Installation Requirements:
- Install in any empty RX3i universal backplane slot
- Use CAT5/5e cabling; ensure proper IP configuration via Station Manager
- Usage Notes:
- Update firmware to 2.51+ for hot-swap support
- Avoid combining with IC695CPE400 in the same rack
- Use Station Manager to configure IP, redundancy, and security settings
