Description
GE IC698CPE010 Technical Specifications:
- Microprocessor: 300 MHz Intel Celeron microprocessor.
- Memory Capacity: 10 MB of battery-backed RAM and 10 MB of non-volatile flash memory.
- I/O Capacity: Supports up to 32K bits of discrete I/O and 32K words of analog I/O.
- Boolean Execution Speed: 0.33 milliseconds per 1000 Boolean contacts/coils.
- Communication Ports: Dual embedded 10/100 Mbps Ethernet ports, one RS-232 port, one RS-485 port, and one RS-232 station manager port.
- Backplane Compatibility: VME64 standard format.
Functional Features:
- Dual Processor Architecture: Dedicated control and communication processors ensure consistent scan times even during peak network traffic.
- Advanced Programming Support: Supports C language, Ladder Logic, Structured Text, and Function Block Diagrams.
- Online Editing: Features Test Edit Mode, allowing users to modify running programs without halting the controlled process.
- Web Server & FTP: Built-in web server and FTP capabilities allow up to 16 simultaneous connections for remote monitoring and configuration.
- Symbolic Variables: Automatic symbolic variable mapping optimizes memory utilization.
Application Scenarios:
- High-speed discrete manufacturing and motion control.
- Continuous process control in chemical and pharmaceutical industries.
- Large-scale material handling and logistics automation.
- Power generation and utility management systems.
Performance Parameters:
- Scan Time: Highly deterministic processing for time-critical control loops.
- Data Integrity: Error-Correcting Code (ECC) protection for memory to prevent data corruption in high-EMI environments.
- Protocol Support: SRTP, Modbus TCP Server/Client, Ethernet Global Data (EGD), Modbus RTU Slave, SNP, and Serial I/O.
Material Composition & Structural Characteristics:

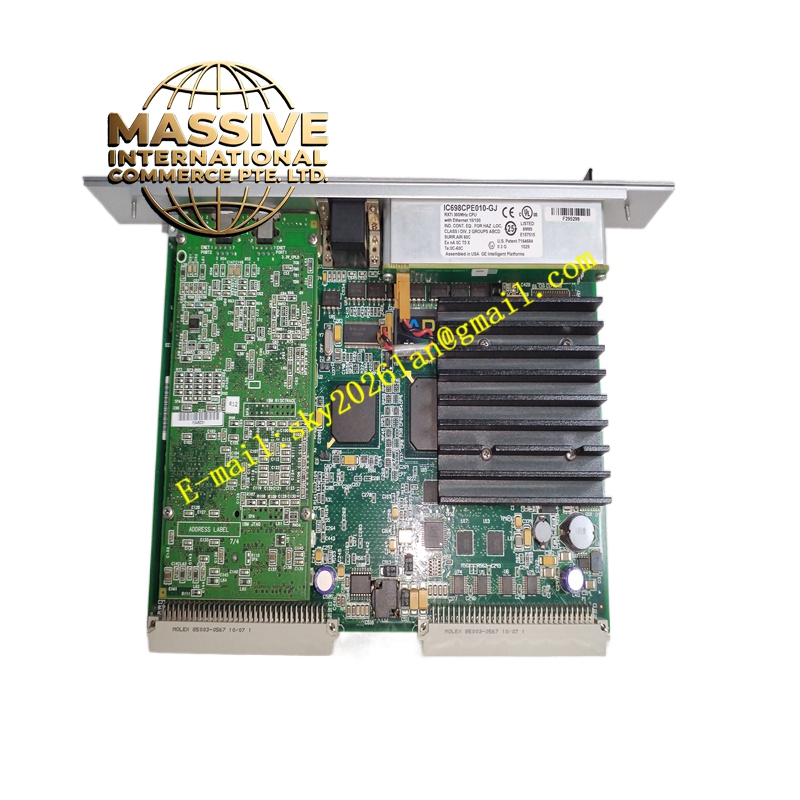

- Form Factor: Single-slot VME64 module designed for standard RX7i racks.

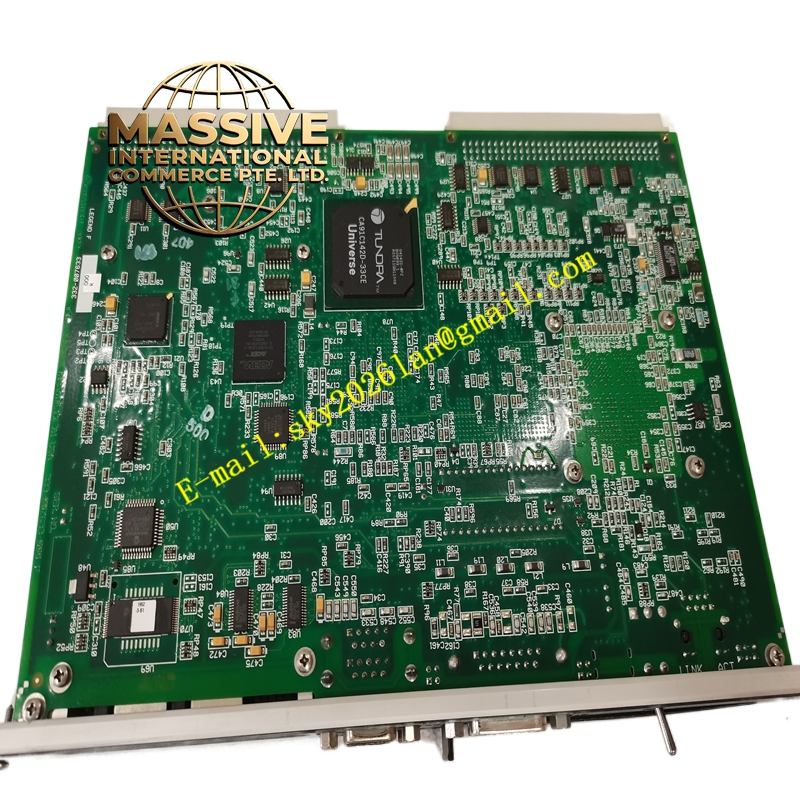

- Component Build: Industrial-grade surface-mount components optimized for thermal management and vibration resistance.
- Indicators: Front-panel diagnostic LEDs for Run, Status, Fault, and battery health.
Working Principle: The CPU continuously executes user control logic stored in its RAM, reading inputs from the VME64 backplane and updating outputs. The dedicated communication processor handles all network traffic asynchronously, ensuring the control scan time remains unaffected by external data requests. The non-volatile flash memory stores the operating system and firmware, which can be upgraded without replacing hardware.
Installation Requirements:
- Slot Placement: Must be installed in the designated CPU slot (Slot 1) of the RX7i rack.
- Power: Requires a stable 5V DC backplane power supply.
- Wiring: Use shielded Cat5e cables for Ethernet and properly grounded shielded cables for serial ports.
- Battery: A lithium battery must be installed to maintain RAM contents during power loss.
Usage Precautions:
- Electrostatic Discharge (ESD): Always use an ESD wrist strap when handling the module to prevent damage to sensitive microelectronics.
- Firmware Upgrades: Ensure the system is backed up before performing any firmware updates via the serial or Ethernet port.
- Thermal Management: Maintain adequate clearance above and below the module to ensure proper convective cooling.
- Grounding: Ensure the rack and chassis are properly grounded to a single-point earth to prevent ground loops.
